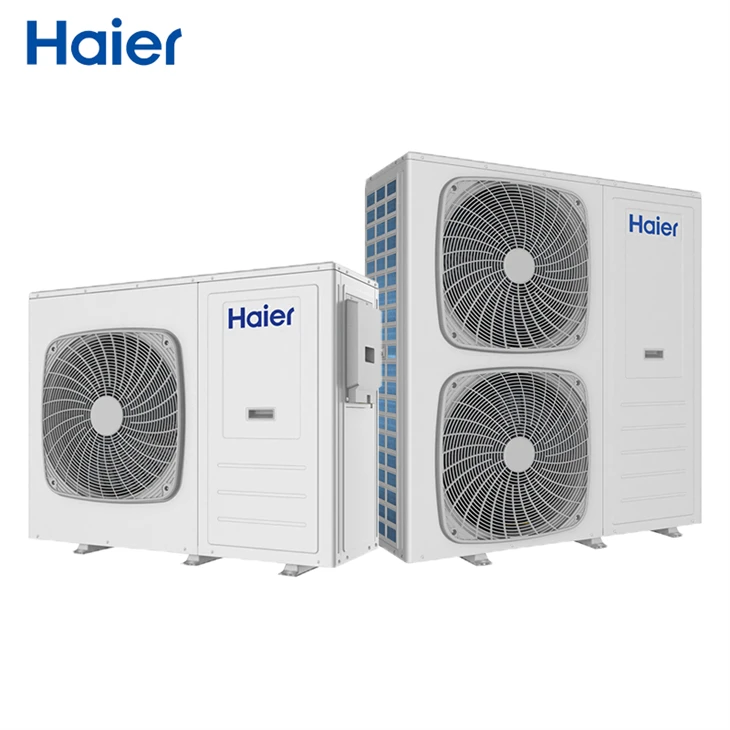

New Heating Heat Pump System

New Heating Heat Pump System

Air energy
24-hour whole-house heating
High efficiency frequency conversion
Safety and environmental protection
Send Inquiry
Description
content:

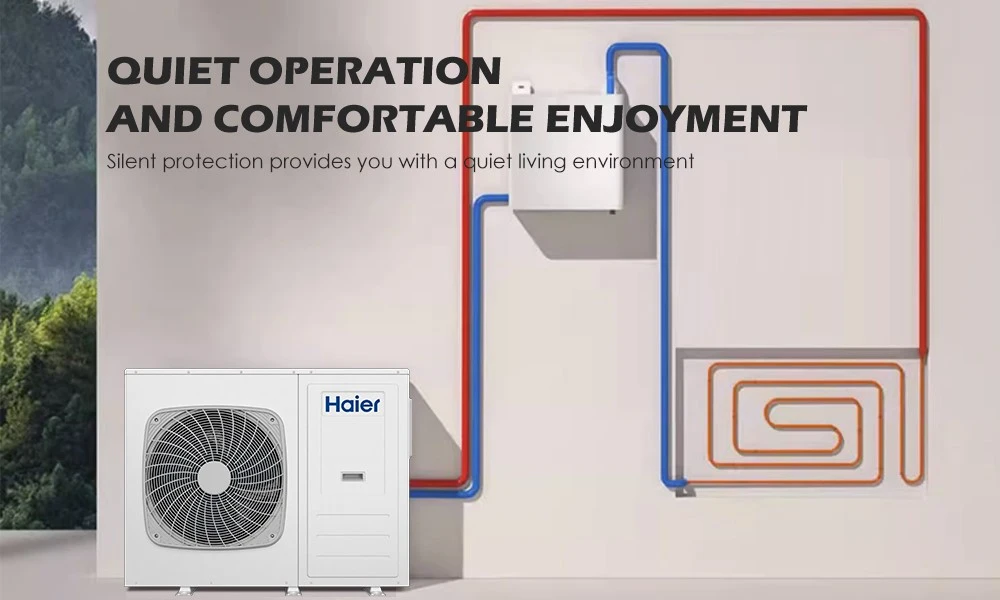

product-1000-600

The new heating heat pump system is an environmentally friendly and energy-saving heating method. It uses natural resources such as air and water to convert heat energy to heat the room. The use of heating heat pump systems avoids safety hazards and environmental pollution caused by traditional heating methods such as gas and oil, and reduces energy waste.



product-1000-600



Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

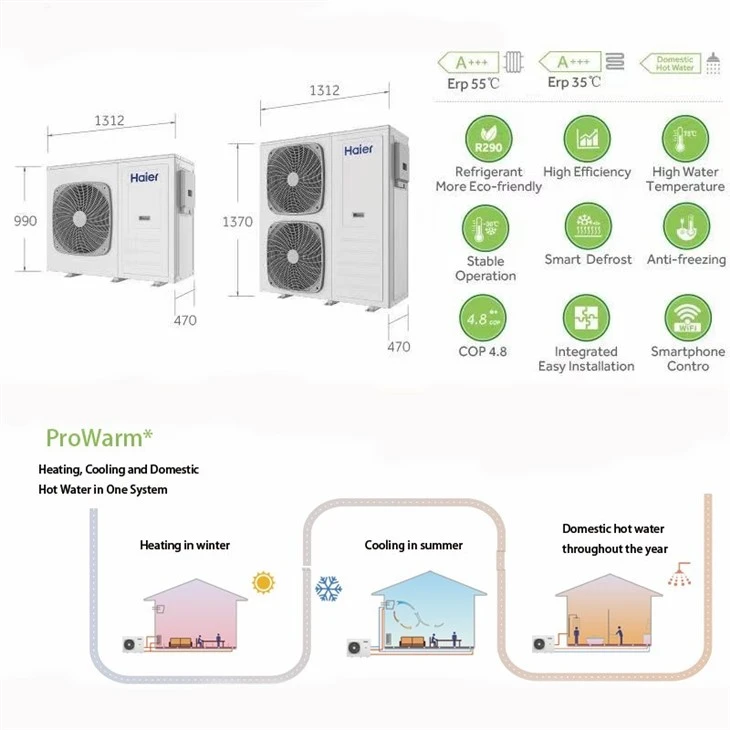

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



product advantages:

Efficient and energy-saving: The heating heat pump system uses natural energy for heating, which can effectively save energy consumption, keep the indoor temperature stable, and improve heating efficiency.

product-1000-596

Safety and environmental protection: Compared with traditional heating methods, the heating heat pump system does not have open flames and does not produce harmful substances such as carbon dioxide and carbon monoxide, which greatly reduces safety hazards and environmental pollution.



product-1000-601

Intelligent control: The heating heat pump system can automatically adjust the heating mode according to changes in indoor and outdoor temperatures. It has an intelligent control function that can automatically identify and adjust heating efficiency to improve comfort.



product-1000-600



Operating principle:

Heating: When the indoor temperature is lower than the set temperature - the set temperature difference, the host automatically adjusts the load and outlet water temperature according to the ambient temperature to heat the room. When the indoor temperature reaches the set temperature, the host operates at low frequency to keep the indoor temperature constant.

product-1000-595

Refrigeration: When the indoor temperature is higher than the set temperature + the set temperature difference (adjustable), the host automatically adjusts the load and outlet water temperature according to the ambient temperature to cool the room. When the indoor temperature reaches the set temperature, the host operates at low frequency to keep the indoor temperature constant.



product-1000-600

Hot water: When the water temperature in the water tank is lower than the set temperature - the set temperature difference, the host will work and the water temperature will stop heating when it reaches the set temperature.



product-1000-602

product-1000-599



quality control:

The new heating heat pump system has passed the manufacturer's full-process monitoring system, and strict quality inspections have been carried out in every link such as production, assembly, and debugging to ensure the reliability and stability of the product. Each heating heat pump system needs to undergo comprehensive testing and trial operation before leaving the factory to ensure that product quality meets relevant national standards and requirements.



FAQ:

1. Who are we?

We are a trading company headquartered in Germany and have been engaged in trading for many years. We are also an agent for Haier heat pumps. To provide users with reliable, efficient and energy-saving products. We firmly believe that through our efforts, we can create a better life for our customers.



2. What issues should be paid attention to in the maintenance of heating and heat pump systems?

Maintenance of heating and heat pump systems includes cleaning, inspection and replacement of parts. When performing maintenance, users should first understand how to clean, inspect and replace parts, and pay attention to safety. If you are not sure how to do this, you need to seek professional help.



3. How to clean the heating heat pump system?

Answer: The heating heat pump system should be cleaned regularly during use to avoid affecting its effectiveness. The air filter and water filter can be removed for cleaning. Generally, the pipes should be cleaned every 2.3 years.
