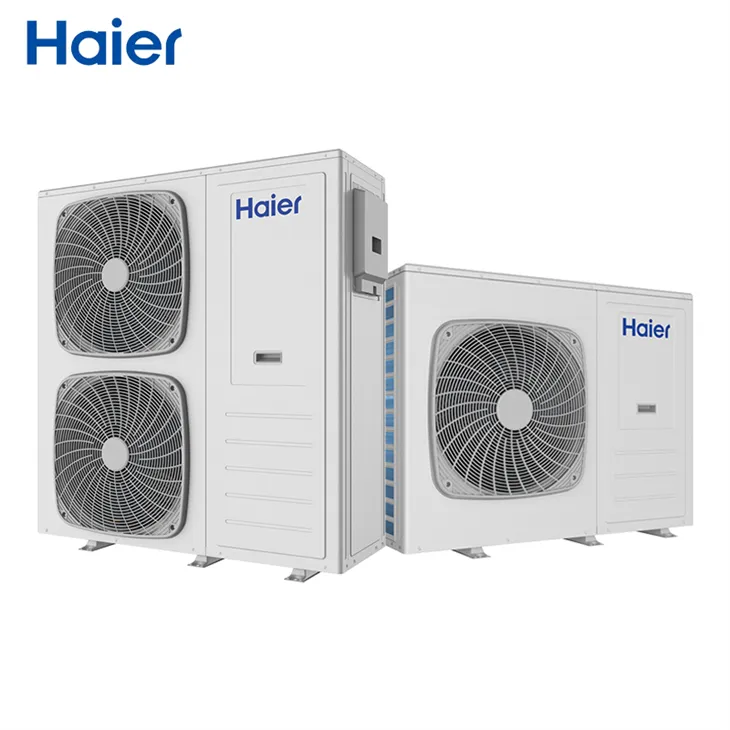

Product introduction:
Air to hot water heat pump adopts the most advanced technology, which can heat water quickly and efficiently. It is energy-saving and environmentally friendly, has a long service life and low maintenance cost. It is suitable for home and commercial environments. There is no need to introduce traditional fuel and it can be installed freely anywhere, bringing users a healthy, comfortable and safe experience.
Product parameters:
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
Intended use of the units |
Low and medium temperature application |
||||||
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
Refrigerant |
Type |
- |
R290 |
||||
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Water proof grade |
/ |
IPX4 |
|||||
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
Heating |
℃ |
-30-35 |
|||||
DHW |
℃ |
-30-43 |
|||||
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
Heating |
℃ |
24-75 |
|||||
DHW |
℃ |
30-60 |
product details:
1. Low energy consumption: This air-source hot water heat pump adopts high-efficiency technology and can work at low temperatures, saving energy while ensuring hot water supply, thereby reducing household energy consumption.
2. Stable and reliable: The product uses high-quality electronic components and heating devices, which are stable and reliable. It is also equipped with multiple protection measures to ensure user safety.
3. Efficient and save money: This heat pump has high-efficiency heating capacity and high-efficiency energy-saving performance. It can cool in summer and provide heating in winter, thereby saving water and electricity bills and improving the utilization of household budgets.
Product display:

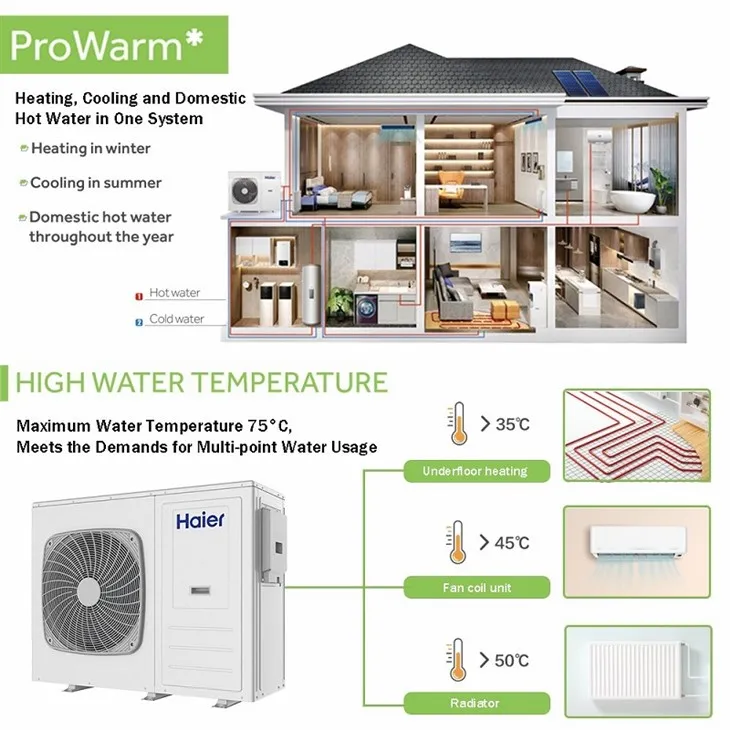

Ideal for improving home energy efficiency. It can heat water quickly and efficiently, up to 75℃, convert air energy into household energy, support intelligent control, and is easy to operate, making your home warmer and more comfortable.
brand introduction
Haier Heat Pump is a well-known company with many years of experience in the research and development of heating and air conditioning technology. Its heat pump products adopt green, efficient, environmentally friendly and comfortable technology to provide users with the highest quality home heating, cooling and hot water supply services. Adopting the third generation main control technology, it has the characteristics of high efficiency, energy saving, low noise, safety and reliability. Its rapid heating, intelligent control, intelligent defrost and other functions can better meet the comfort needs of users.
The reason why the brand is favored by the majority of users is inseparable from Haier heat pump's continuous innovation and continuous improvement of product quality and service. As long as you choose a Haier brand heat pump, you can safely enjoy high-quality, intelligent, and environmentally friendly hot water heat pump services.
about Us:
STORM is a company specializing in air-energy hot water heat pump products, providing reliable, efficient and energy-saving products to users. We firmly believe that through our efforts, we can create a better life for our customers.
