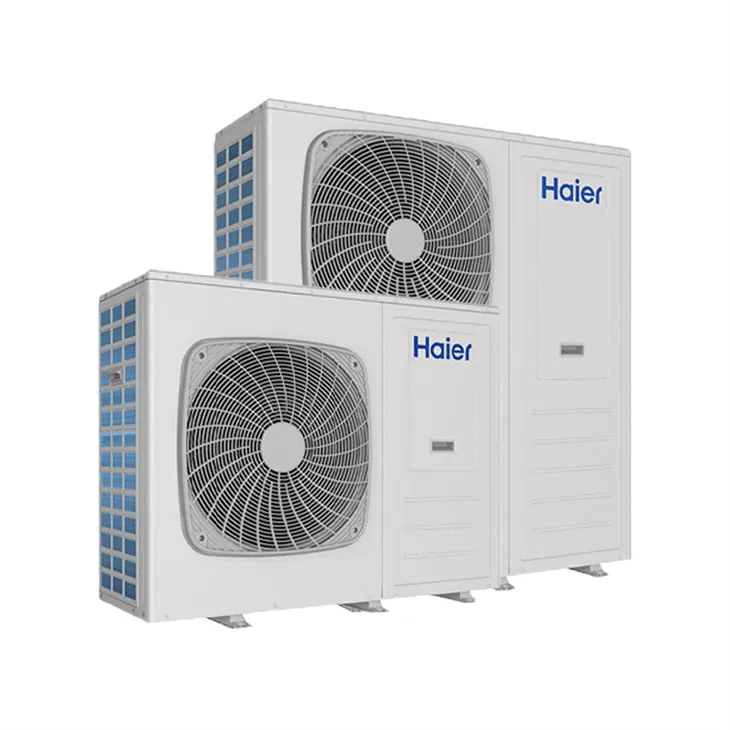

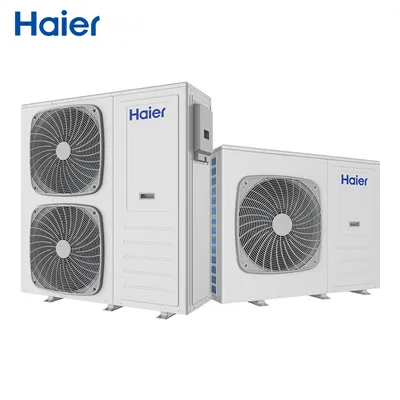

Product introduction:
The Most efficient ASHP is an energy-efficient product that uses advanced frequency conversion technology to provide you with a warm and comfortable indoor environment in winter and effective cooling in summer. Converting heat in the air into energy realizes true energy recycling and saves a lot of energy consumption. Our air source heat pump is both environmentally friendly and energy-saving, making it the best choice for your home life.
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
product details:

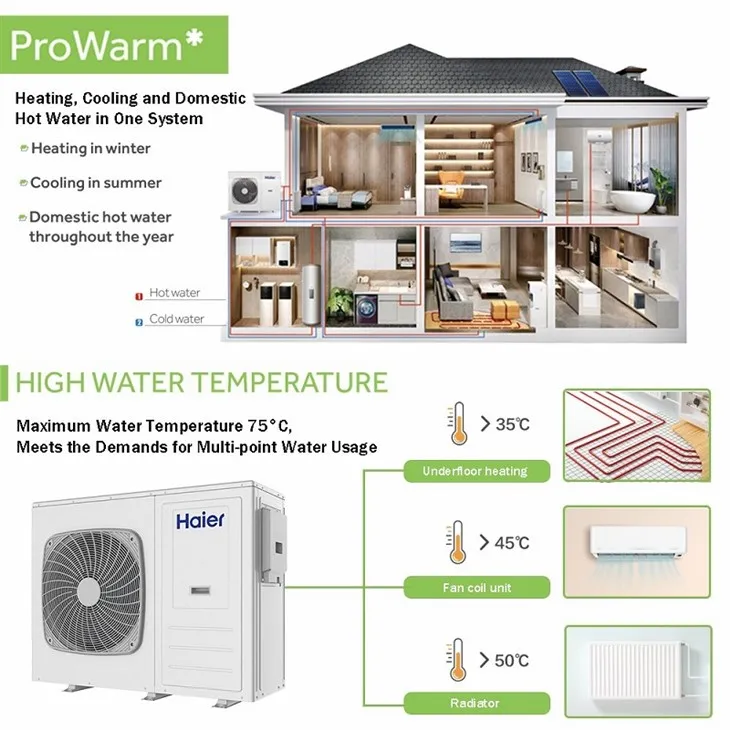

Stable performance with ambient temperatures as low as -30 °C and water supply temperature of 75 °C.
R290 is the latest environmentally friendly refrigerant with a GWP value of 3, zero emissions and zero pollution.
Smart grid makes air source heat pumps more intelligent and efficient, providing a better solution for environmental protection and greenness
Product parts:
Electronic expansion valve
Big brand, high quality, PID adjustment, high control accuracy

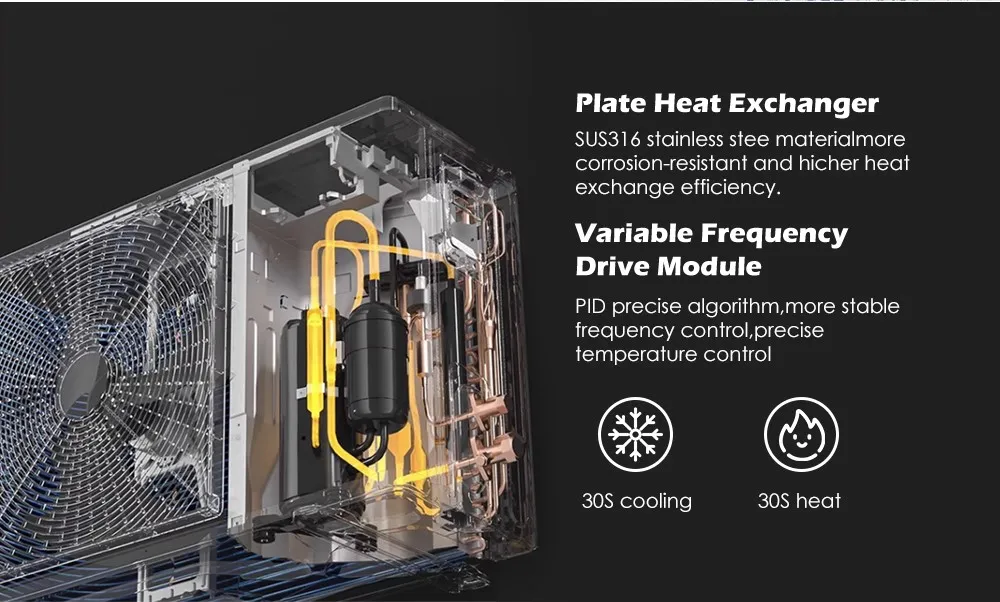

Plate heat exchanger
High-quality metal material, resistant to corrosion while improving conversion efficiency
Why choose us?
When you choose our air source heat pump, you will get many advantages, not only bringing a comfortable and warm experience to your life, but also contributing to the environment. The following are our advantages:
1. High-quality design-big brand quality assurance
2. The product is easy to install, efficient in output, energy-saving and environmentally friendly, low-noise, and rich in functions.
3. Our air source heat pump team has rich experience and professional knowledge and can provide you with sound after-sales service and technical support to make your use more convenient and smooth.
Choosing us can not only provide you with a comfortable and warm life experience, but also contribute to the environment and make your life healthier and better. We look forward to working with you!
FAQ
Q: Does an air source heat pump consume a lot of electricity? Will the electricity bill increase?
Answer: Air source heat pump is an efficient and energy-saving heating method. Compared with traditional electric heaters or gas heaters, air source heat pumps can convert one kilowatt hour of electricity into multiple times of heat output, greatly reducing energy waste. Electricity bills are much less than gas bills.
Q: What preparations are needed to install an air source heat pump?
Answer: Installing an air source heat pump requires careful consideration. There needs to be a stable power supply and drainage pipes near the selected location. At the same time, the location of the installed outdoor unit and the installation method of the indoor unit need to be considered. To ensure the installation effect and safety, it is best to ask professionals to install it.
Q: Is it difficult to maintain an air source heat pump?
Answer: The maintenance of air source heat pumps is not difficult. It requires regular dust removal and cleaning of the outdoor unit, replacement of air filters, and inspection and maintenance of pipes and power supplies.
Q: What is the effect of using an air source heat pump?
Answer: Air source heat pumps use advanced heat pump technology and use air as a heat source. By absorbing and transmitting heat in the air, they complete indoor heating, heating and cooling, keeping the indoor temperature stable and comfortable. At the same time, this equipment also has the advantages of high efficiency, energy saving, stable operation, environmental protection and pollution-free, etc. It is an ideal way of home heating.
