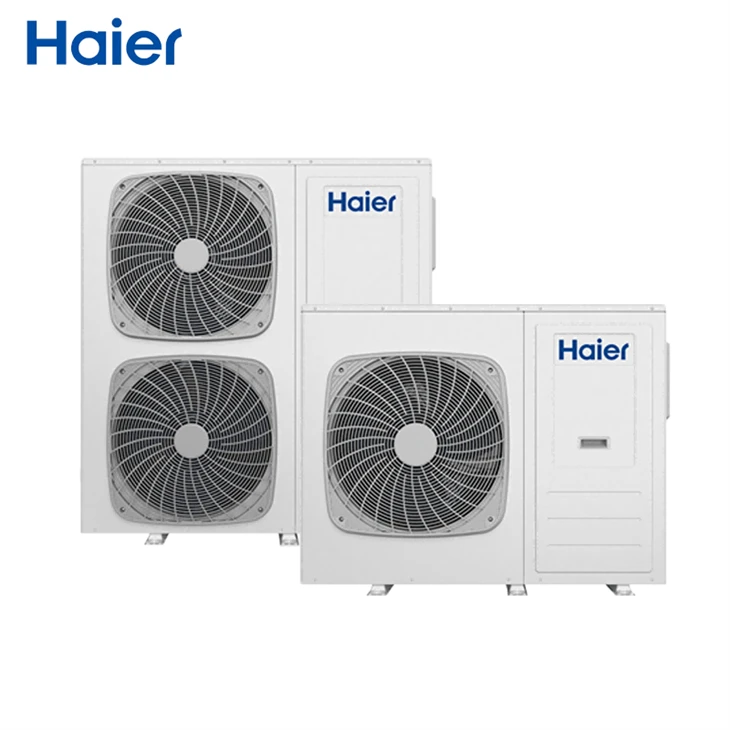

Product introduction:
The intelligent control heat pump is a revolutionary heat pump equipment that automatically senses the ambient temperature, automatically defrosts and antifreezes, achieves rapid heating, and saves energy. This smart device also has fully controllable functions. Remote control and intelligent adjustment can be achieved through the UI control panel or mobile APP, bringing convenience and comfort to your life.
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
Intended use of the units |
Low and medium temperature application |
||||||
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
Refrigerant |
Type |
- |
R290 |
||||
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Water proof grade |
/ |
IPX4 |
|||||
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
Heating |
℃ |
-30-35 |
|||||
DHW |
℃ |
-30-43 |
|||||
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
Heating |
℃ |
24-75 |
|||||
DHW |
℃ |
30-60 |
product details:

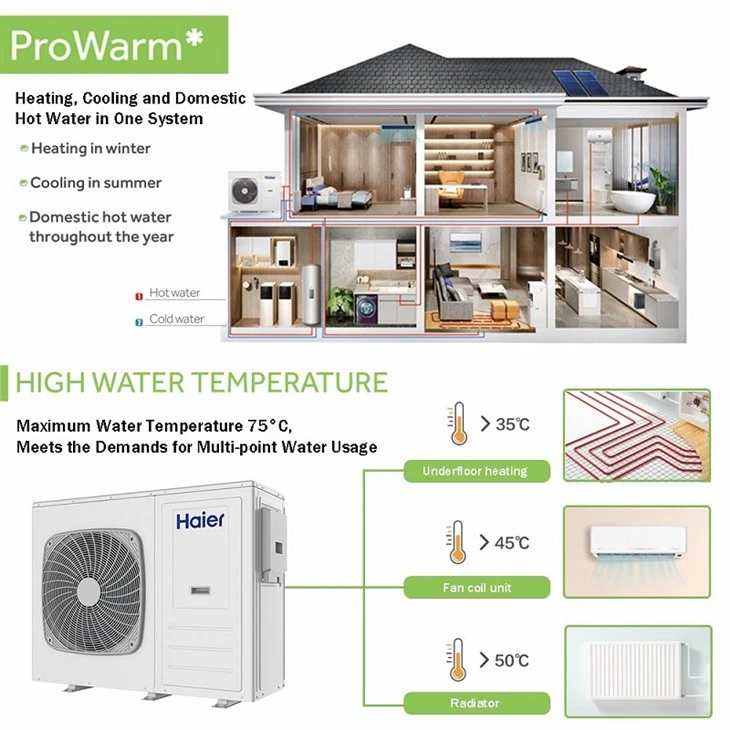

The outlet water temperature of the product can reach up to 75°C, so it can meet the water temperatures required by different ends. This allows the product to serve more users and have wider applicability.
Heat pump frequency conversion technology is a highly efficient and energy-saving technology that can realize multiple functions such as heating, cooling, and hot water. It provides a more convenient choice for people's lives and allows us to have a more comfortable and healthy living environment.

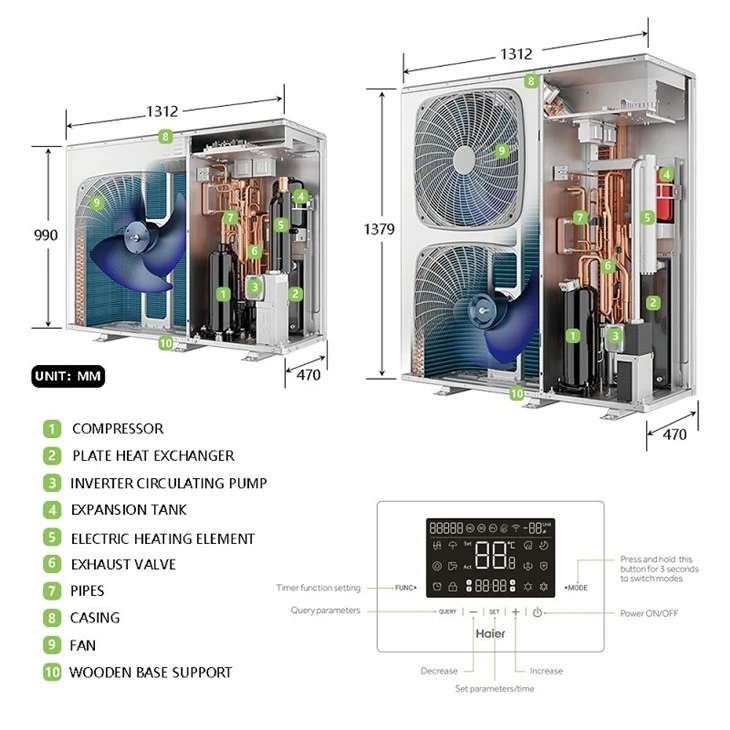

Product parts:
The one-piece design is an innovative and visionary technology, with exquisite appearance and moderate size, suitable for use in all types of homes and commercial places.

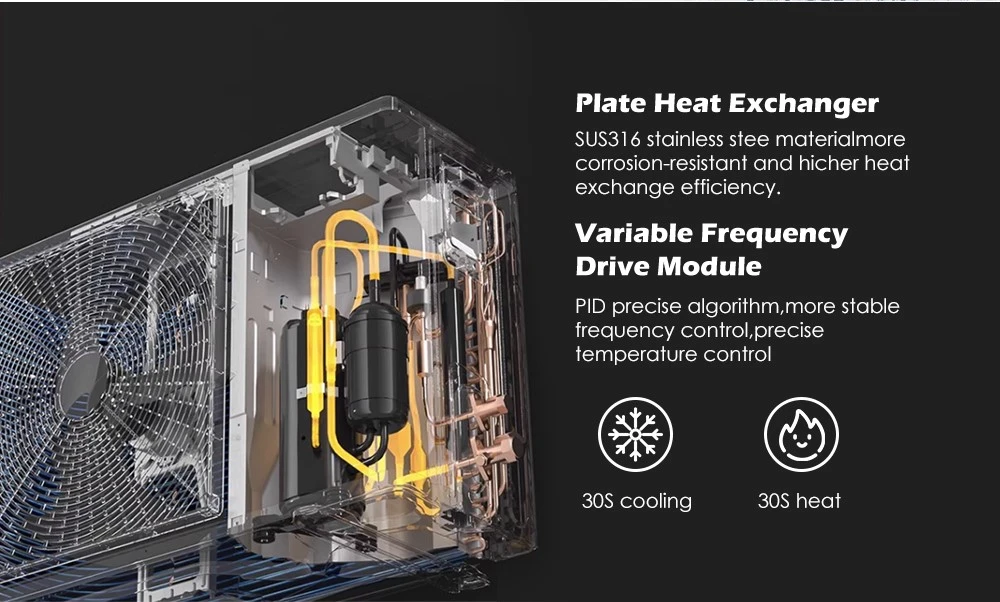

Panasonic inverter compressors overcome the problems of high energy consumption, high noise, and high maintenance costs caused by traditional compressors when starting up by adjusting the speed of the compressor motor, achieving the advantages of energy saving, smooth operation, and convenient maintenance.
Common components of heat pump systems:

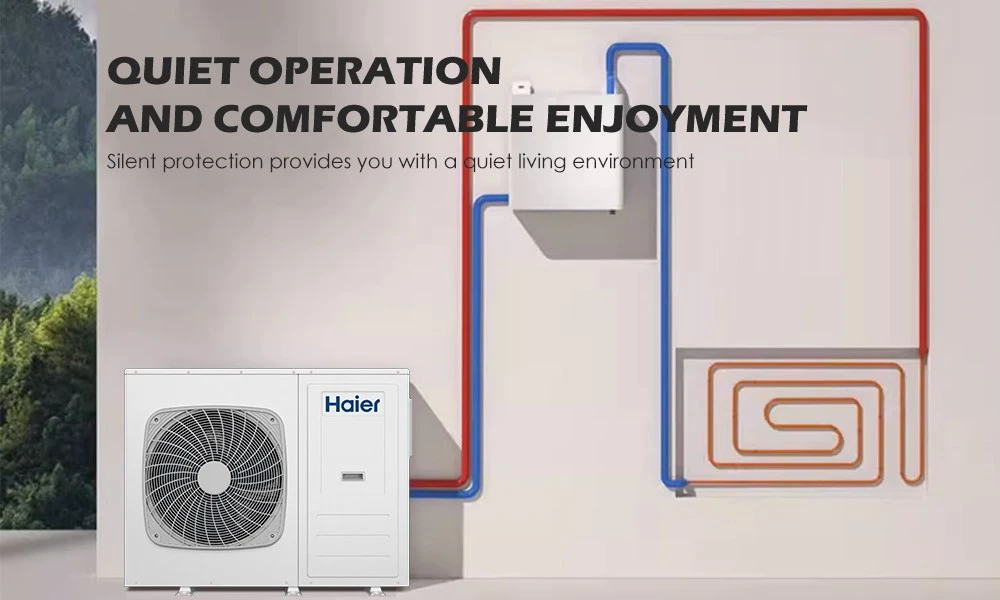

During the operation of the heat pump system, the pipeline component is a very important component. It connects the heat pump equipment and various terminal equipment, such as radiators, radiators, floor heating pipelines, etc. Next, let's introduce the commonly used piping components of heat pump systems.
FAQ
1. What is an intelligent control heat pump?
The intelligent control heat pump is an energy-efficient heat pump system that can automatically control temperature. It is equipped with intelligent controllers and sensors that can monitor indoor and outdoor temperature changes, quickly adjust the heat pump working mode, and provide users with a comfortable temperature experience.
2. What are the advantages of intelligently controlled heat pumps?
Compared with ordinary heat pumps, intelligent control heat pumps can not only achieve remote control and automatic adjustment, but also more accurately sense environmental needs, more efficiently match heat sources, and more accurately control temperature, thereby reducing energy waste and temperature fluctuations, and greatly improving usage. efficiency.
3. Can intelligently controlled heat pumps be suitable for various indoor environments?
Yes, smart control heat pumps are suitable for most indoor environments, including homes, offices, shopping malls, schools, etc. At the same time, it can also adaptively adjust according to user needs and environmental changes to ensure that the temperature is always comfortable.
4. Is it difficult to use the intelligent control heat pump?
No, smart control heat pumps are very simple to install and use. Just follow the instructions. At the same time, the controller is also equipped with a graphical interface and a user-friendly operation interface, allowing users to easily and quickly master the usage. If you still have questions, you can contact our customer service staff at any time, and we will provide more detailed help and answers.
