Ashp Air Source Heat Pump

Ashp Air Source Heat Pump

Multifunctional
New R290 refrigerant
Energy-saving heating + cooling, double A+++
Automatic defrost + antifreeze
Send Inquiry
Description
Product introduction:

product-1000-600

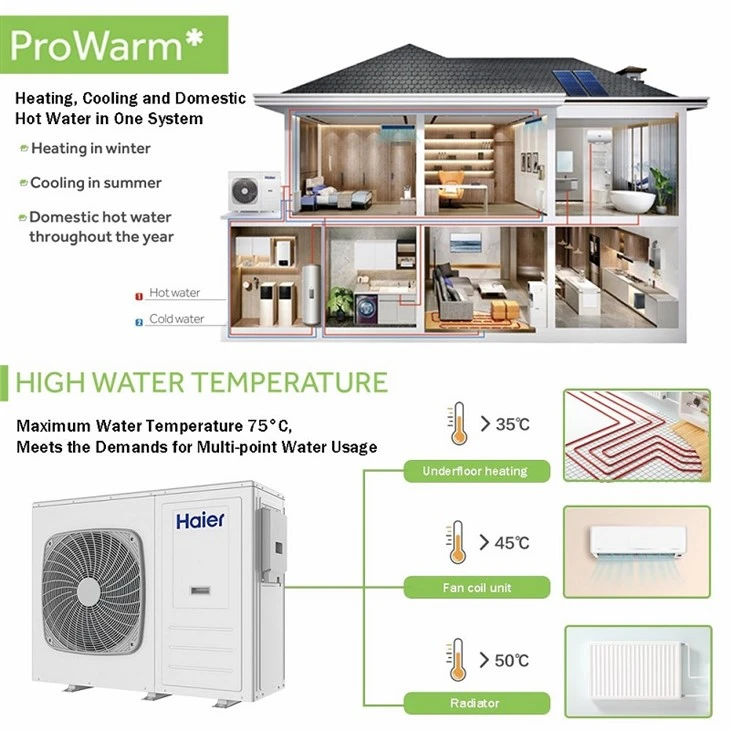

ASHP air source heat pump is an efficient and energy-saving all-in-one machine. It adopts the latest frequency conversion technology, which can not only provide efficient heating function, but also achieve powerful cooling effect. It also uses EVI jet enthalpy increasing technology, which can greatly improve the efficiency of the heat pump during winter heating. The outlet water temperature can reach 75°C. As an intelligent heat pump equipment, it can be remotely controlled through the mobile APP and adjusted anytime and anywhere. temperature, allowing you to enjoy a comfortable living experience.



Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



product details:

product-1000-601

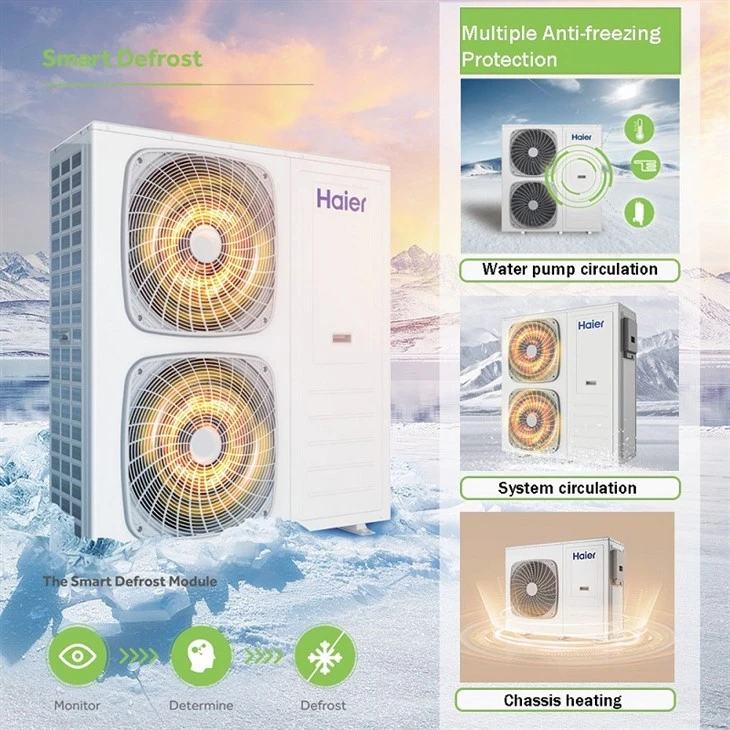

Intelligent defrosting function and self-cleaning technology reduce cleaning workload and time cost.



product-1000-596

Electric heating: The electric heating function can be turned on in the heating and hot water modes to supplement the attenuation of the unit's heating performance.



Dual noise reduction design is an effective technology for reducing noise interference



product-1000-595



Product parts:

product-1000-595

UI control panel: Smart home IOT function, reserved modbus interface, providing users with more convenient, intelligent and efficient services



Internal copper pipes: good corrosion resistance, not easy to age, not easy to deform, strong durability, excellent conductivity, easy to install and maintain, etc.



product-1000-602

Product installation space requirements

In order to ensure the ventilation of the unit and the smooth operation of maintenance equipment, at least 500mm of space should be reserved on the top of the unit and the side of the junction box. At the same time, at least 300mm of space should be reserved to facilitate maintenance on the rear and left side of the unit. Doing so will ensure the normal operation and maintenance of the unit, keeping it in optimal condition at all times.



product-1000-600

product-1000-600

product-1000-600



FAQ

1. Question: Does an air source heat pump consume a lot of power?

Answer: Compared with traditional heating methods, air source heat pumps are more energy-saving.



2. Question: Will there be any noise problems when using an air source heat pump?

Answer: We use dual noise reduction technology to solve this problem. The air source heat pump will produce a certain amount of noise, but this noise level is relatively mild and will not have a big impact on life. At the same time, regular maintenance is required to maintain the normal operation of the equipment.



3. Question: What issues should be paid attention to when using an air source heat pump?

Answer: When using an air source heat pump, you need to pay attention to keeping the equipment clean, and clean the filter and drainage holes regularly. In addition, it is also necessary to prevent outdoor water and sand from entering the room, and abide by the equipment usage specifications to ensure the normal operation of the equipment and extend the service life of the equipment.



4. Question: Is the cost of air source heat pump high?

Answer: Compared with traditional heating methods, the initial investment cost of air source heat pumps is higher, but because it is more energy-saving, it can save a lot of energy expenses during use. At the same time, air source heat pumps also have more stable and reliable performance, which can improve the comfort of life. Therefore, when considering investing in an air source heat pump, we should consider its energy saving and stability in the long term.
