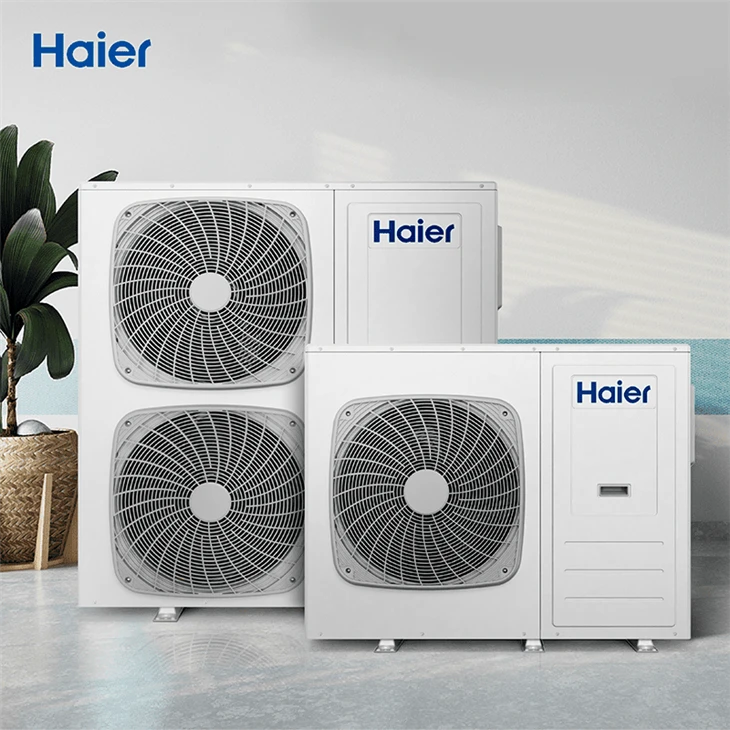

Comfort Heat Pump

Model			HPM	HPM	HPM	HPM	HPM
			08-Nd2	10-Nd2	12-Nd2	14-Nd2	16-Nd2
Intended use of the units			Low and medium temperature application
Power supply		V / Ph / Hz	220-240/1/50
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	12	14	16
	Rated power input	kW	1.62	2.08	2.45	2.74	3.25
	COP	kW/kW	4.95	4.8	4.9	5.11	4.92
Heating (AT7/6, WT47/55)	Capacity	kW	8	10	12	14	16
	Rated power input	kW	2.42	3.03	3.43	4.24	5
	COP	kW/kW	3.3	3.3	3.5	3.3	3.2
Cooling (AT35, WT23/18)	Capacity	kW	8	10	11.4	14	16
	Rated power input	kW	1.63	2.15	2.78	2.74	3.33
	COP	kW/kW	4.9	4.65	4.1	5.11	4.8
Cooling (AT35, WT12/7)	Capacity	kW	8	10	11.4	14	16
	Rated power input	kW	2.5	3.33	4.07	4.52	5.51
	COP	kW/kW	3.2	3	2.8	3.1	2.9
SCOP	Average climate	35℃	4.9	4.9	4.9	5.2	4.9
	Average climate	55℃	3.85	3.85	3.85	3.9	3.9
Season space heating energy efficiency class	Average climate	35℃	A+++	A+++	A+++	A+++	A+++
	Average climate	55℃	A+++	A+++	A+++	A+++	A+++
SEER	Fan coil application	7℃	4.5	4.5	4.5	5.1	5.1
	Cooling floor application	18℃	6.3	6.5	6.2	7.0	7.0
Refrigerant	Type	-	R290
	Charge	kg	1.3	1.3	1.35	1.95	1.95
E-Heater Backup		kW	3.0	3.0	3.0	6.0	6.0
Sound Pressure(1m)		dB	45	49	51	51	51
Water pump	Rated water flow	m3/h	1.38	1.72	2.06	2.41	2.75
	Total water head	m	12.5	12.3	12	11.5	11.1
	Available water head	m	9	8.8	8.5	8	7.6
Maximum working pressure of refrigerant		Mpa	0.85/3.2
Water side safety valve		Mpa	0.6	0.6	0.6	0.6	0.6
Water proof grade		/	IPX4
Water side connection		in	1	1	1	1	1

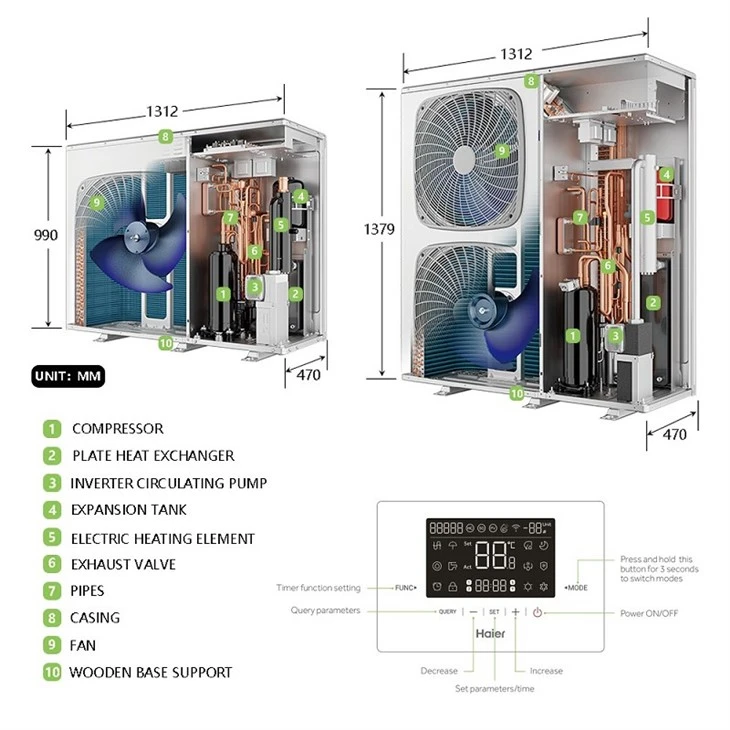

Net dimension	W*D*H	mm	1312x470x990		1312x470x1370
Package dimension	W*D*H	mm	1362x567x1167		1362x567x1560
Ambient temperature range	Cooling	℃	10-48
	Heating	℃	-30-35
	DHW	℃	-30-43
Leaving water temperature range	Cooling	℃	5-25

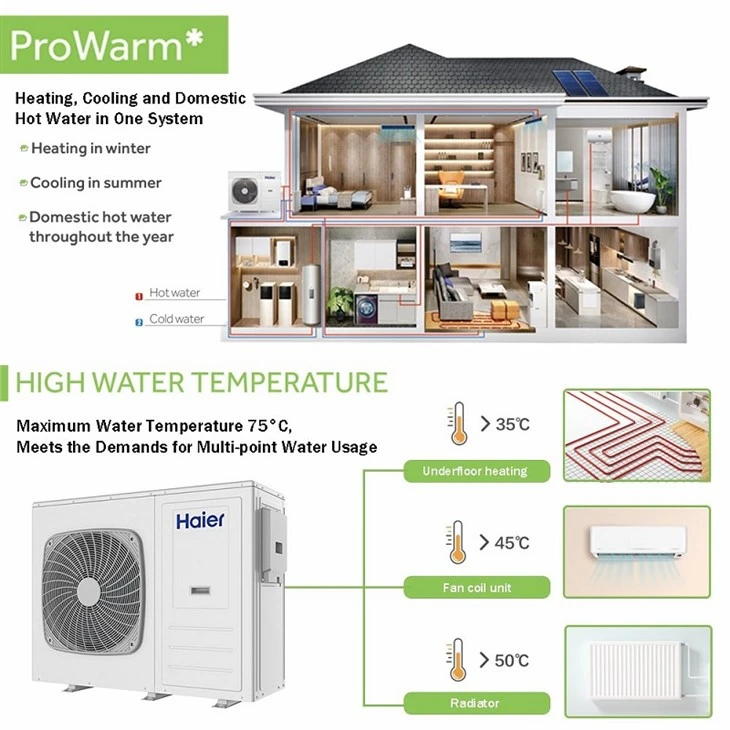

	Heating	℃	24-75
	DHW	℃	30-60

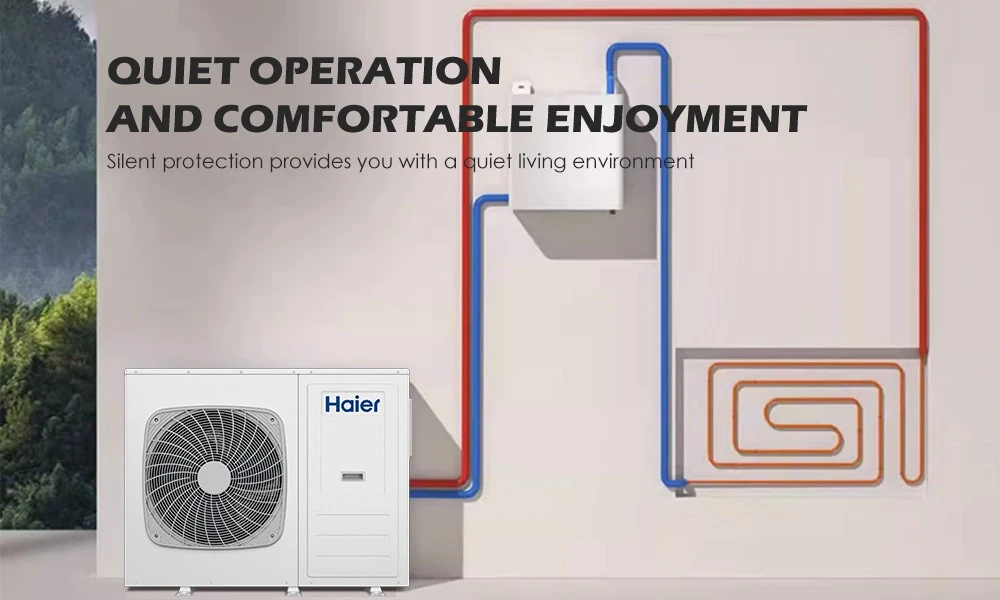

1. Ultra-quiet operation, allowing you to enjoy comfortable warmth at any time.

2. Using high-efficiency energy-saving technology, it saves energy and worry in electricity consumption, and is economical and practical.



3. Intelligent control system can realize remote control and enjoy comfort anytime and anywhere.

4. High-efficiency energy-saving mode, environmentally friendly and healthy, easily meeting the needs of the whole family.





1. Adopt fully enclosed design, safe and reliable, long service life.

2. Fully automated control system without much manual intervention.

3. Powerful heating and cooling capabilities, eliminating the trouble of switching between hot and cold.

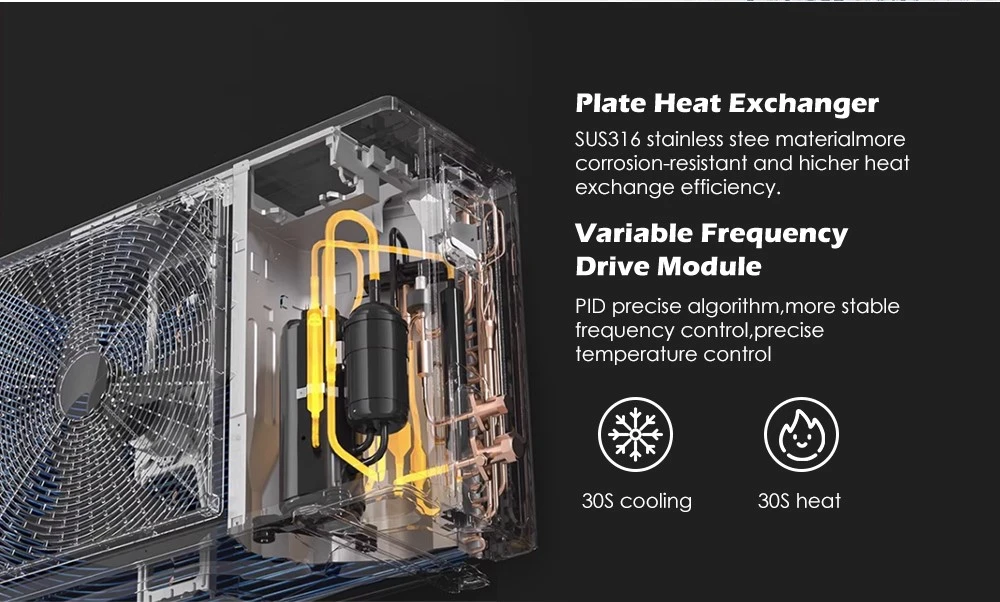

Haier air source heat pump uses high-quality components and materials to ensure its details and performance are excellent. Among them, the high-efficiency compressor and heat exchanger make the energy efficiency of this product reach an extremely high level.



Haier is an international enterprise committed to providing customers with high-quality and high-performance products and services. With technological innovation and excellent quality as its core, Haier always pursues more perfect products and services, and has won widespread praise from the public.



We provide comprehensive services and support, not only ensuring product quality and lifespan, but also helping consumers with usage and maintenance issues, providing necessary product parts for warranty, providing necessary product certifications according to local policies, and allowing customers to enjoy local subsidies. For business people, we can also provide you with unexpected terms to satisfy your competition in the market. If necessary, you can contact customer service to obtain it.



1. What should you pay attention to when using Haier air source heat pump?

During use, excessively high temperature and humidity for a long time should be avoided to avoid damage to the product. At the same time, regular cleaning and maintenance are required to ensure the performance and effect of the product.



2. Which places are Haier air source heat pumps suitable for?

It is mainly suitable for residences, offices, schools, libraries and other places to meet the heating, cooling, air conditioning and air purification needs of these places.



3. Is the Haier air source heat pump powerful?

We provide 8-16KW models, which can ensure enough energy to meet the heating and living needs of the family under severe weather conditions.



4. Can Haier air source heat pump save electricity?

Yes, Haier air source heat pump adopts high-efficiency energy-saving technology to reduce power consumption while ensuring high-quality heating and cooling. It is a typical environmentally friendly, energy-saving, and comfortable smart product.
