Heat Pump Hot Water Systems

Heat Pump Hot Water Systems

1. High efficiency and energy saving: COP value 5.1
2. Environmental protection and health: R290 refrigerant has zero pollution
3. Easy to use: intelligent operation, simple and convenient to use.
4. Safe and reliable: safety guarantees such as overcurrent, overheating, and overvoltage.
Send Inquiry
Description
Product introduction:

product-1000-600

The heat pump hot water system is an efficient, energy-saving and environmentally friendly product. It can help you reduce energy consumption and air pollution, and is a good choice for environmental protection and emission reduction. Equipped with a traditional hot water system, our system also has an electric auxiliary heating function to ensure that you can get sufficient hot water supply during peak periods of hot water use. The hot water temperature can reach 75°C, ensuring your comfort during use. Spend. Intelligent power functions have significant advantages in the management, efficiency, reliability and sustainability of energy systems.



Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



product details:



product-1000-601

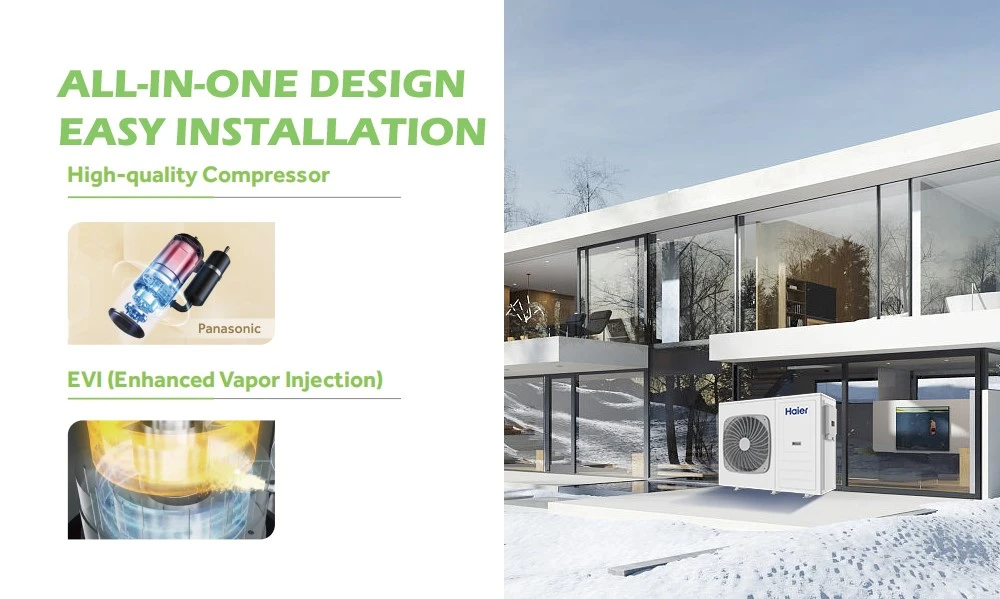

1. The design of the all-in-one machine is not only beautiful and elegant, but also does not take up space. It is suitable for installation in small apartments and places with narrow space.

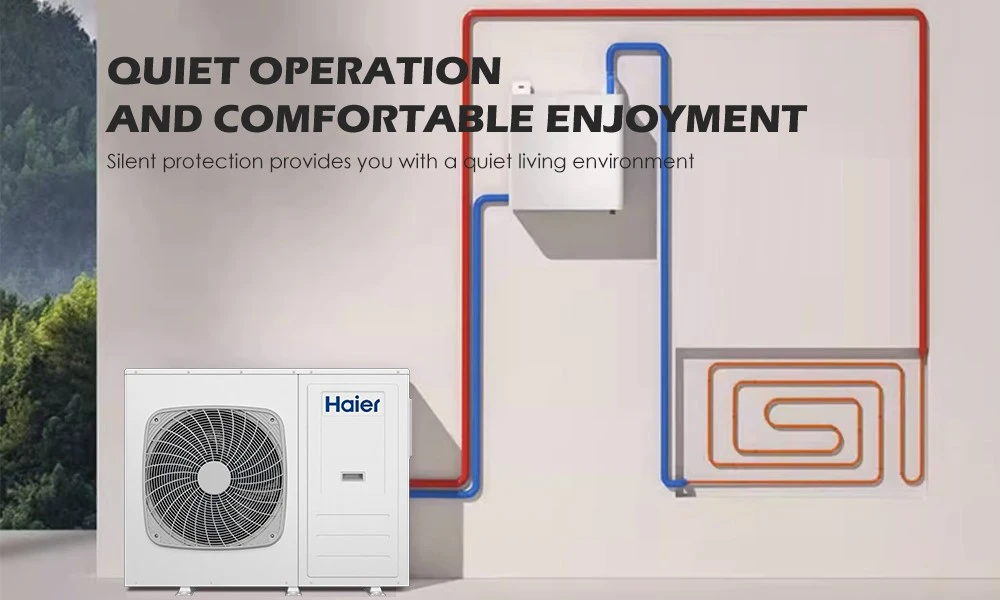

2. The application of noise reduction technology effectively reduces the noise generated by the heat pump unit during operation and reduces the interference to residents' lives.



product-1000-596

3. The integration of the system makes installation simple and fast, reduces the number of installation and maintenance times, and improves the reliability and stability of the equipment.



product-1000-595

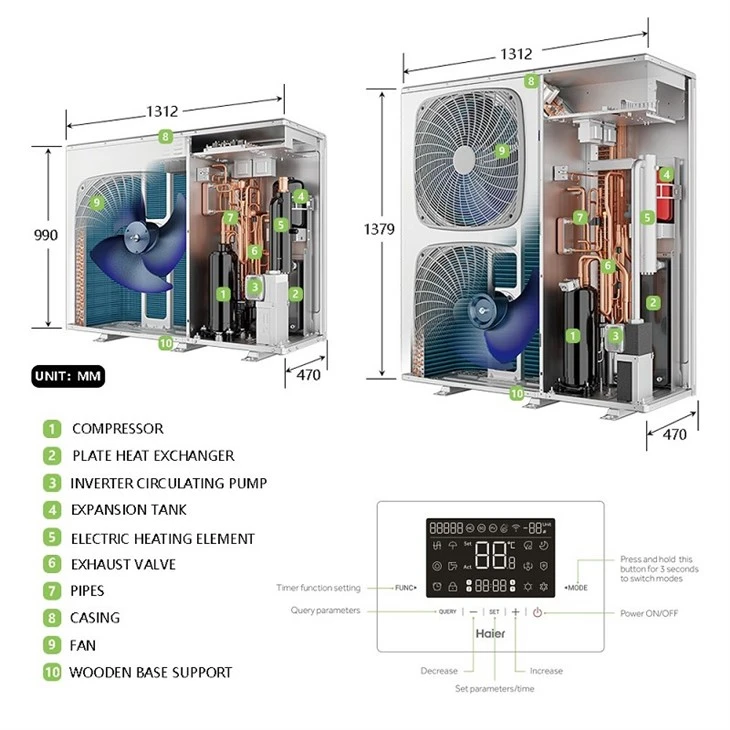

Product parts:

product-1000-599

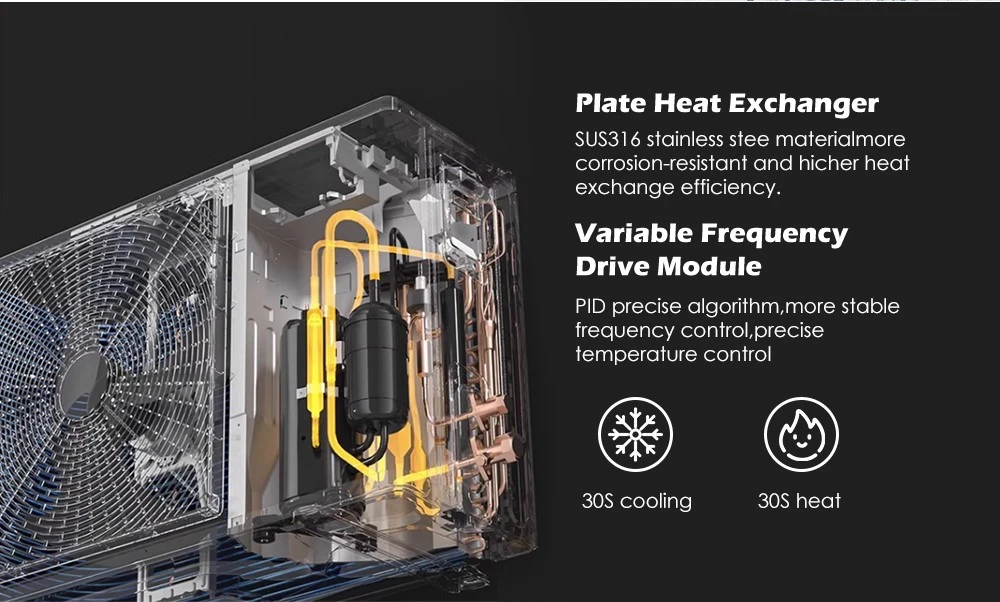

1. The high-efficiency heat exchanger can ensure the efficient operation of the heat pump and transfer heat to the target area, thereby achieving automatic adjustment of indoor temperature and energy saving.



2. The copper internal pipes have good corrosion resistance and thermal conductivity, ensuring the long-term reliable operation of the heat pump system and extending the service life of the heat pump product.



product-1000-602

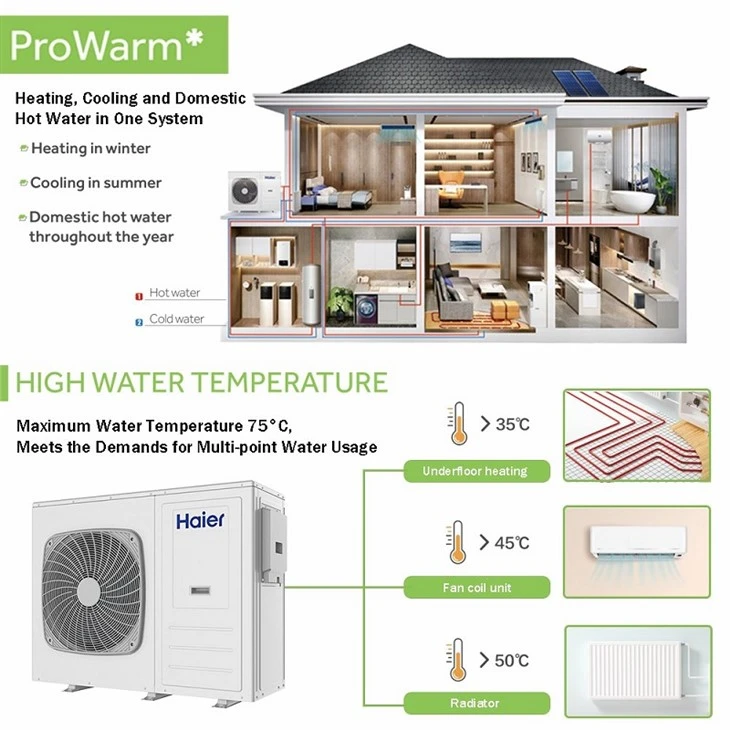

Installation diagram:

The heat pump installation diagram shows that it can be used for floor heating in winter and as an air conditioner in summer, bringing users a practical and comfortable experience, enhancing the quality of family life and providing a warm and pleasant living environment.



product-1000-600

product-1000-600

product-1000-600



Serve:

1. Pre-sales guidance: We will provide users with detailed product introduction and usage guidance to help them choose the heat pump that is most suitable for their families.

2. After-sales warranty: Provide comprehensive after-sales warranty services so that users can receive timely help and solutions if they encounter problems during use. Let more users experience the convenience and benefits of heat pumps! .



FAQ

Q: Can a heat pump hot water system replace a traditional water heater?

Answer: It can completely replace traditional water heaters. The heat pump hot water system has many advantages including energy saving, environmental protection and emission reduction, one machine for multiple purposes, and the intelligent control operation is simple and convenient.



Q: How easy is it to maintain a heat pump hot water system?

Answer: The maintenance of the heat pump hot water system is very simple. We provide pre-sales guidance and after-sales warranty services. If you have any questions or needs, please feel free to contact us at any time.
