The new air source heat pump is an efficient and energy-saving product that can realize heating, cooling and hot water supply. It provides you with a comfortable temperature experience by extracting heat energy from the outdoor air and converting it into hot water or air. Using environmentally friendly refrigerant, no harmful substances are produced, protecting your family and the environment with a compact design. Excellent technology and innovative design, with outstanding features such as high energy efficiency, low carbon and environmental protection, safety and reliability. It is simple to operate, saves space, and makes your home environment tidier.
parameter
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
Intended use of the units |
Low and medium temperature application |
||||||
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
Refrigerant |
Type |
- |
R290 |
||||
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Water proof grade |
/ |
IPX4 |
|||||
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|

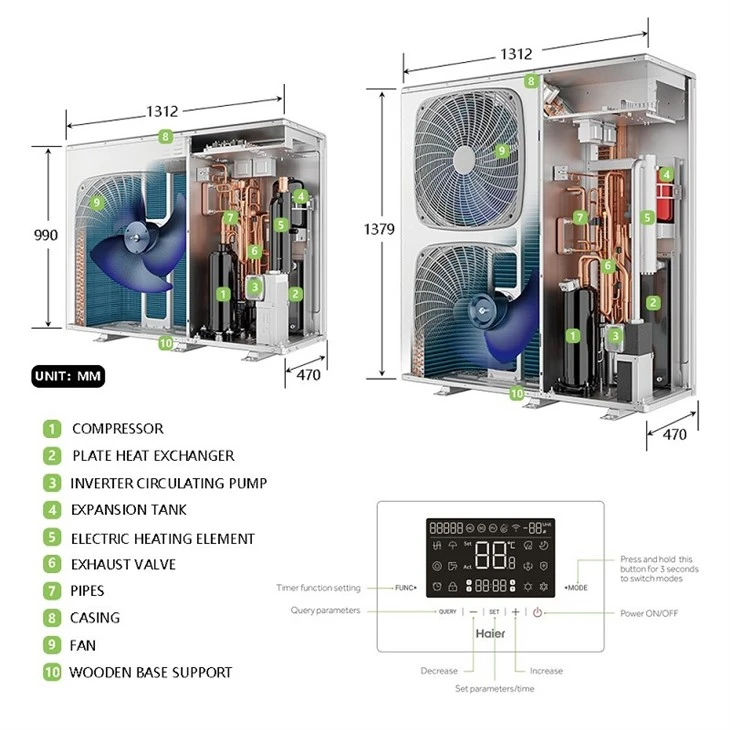

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
Heating |
℃ |
-30-35 |
|||||
DHW |
℃ |
-30-43 |
|||||
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
Heating |
℃ |
24-75 |
|||||
DHW |
℃ |
30-60 |
Product advantages
One machine has multiple uses. One machine can meet the needs of heating and cooling as well as hot water, making it convenient for users to use.

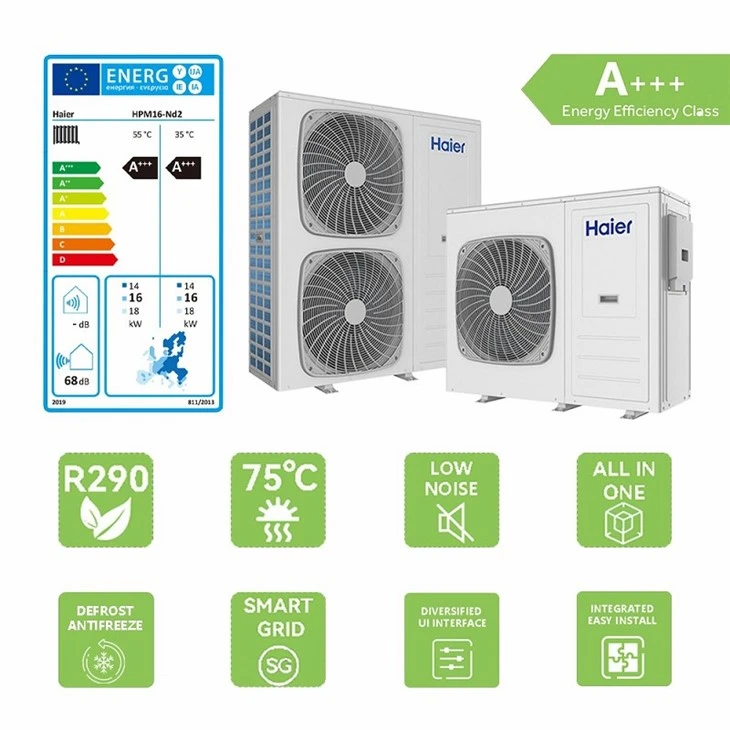

The product energy efficiency grade reaches double A+++, and the COP is as high as 5.1
Stable operation at -30°C low temperature conditions

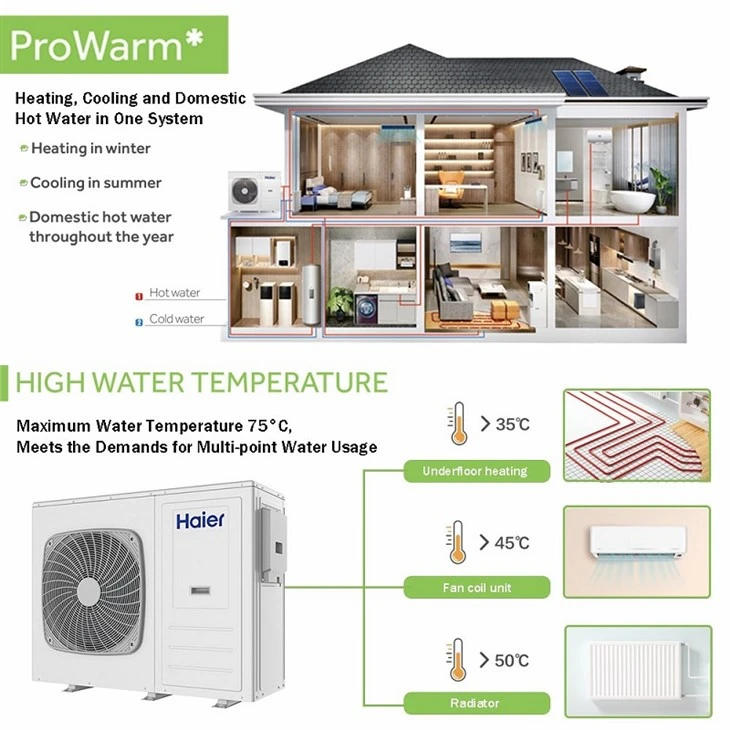

The maximum outlet water temperature is 75°C, meeting various terminal needs
High-Quality Compressors: Panasonic compressors ensure reliable performance for ideal home comfort, every day
EVI (Enhanced Steam Injection): Using EVI technology, the heating performance is still excellent in low temperature environments.
Installation scenario:
The outdoor unit base should be built on solid ground or a structure strong enough to support the weight of the unit. The foundation should be at least 130mm high and 90mm wide, with drainage ditches to prevent water from entering the chassis. Both steel foundation and concrete foundation can be used. The bolts firmly fix the equipment to the foundation, and the height of the bolts protrudes 20-22mm from the foundation surface. Base design prevents excessive vibration and noise.
