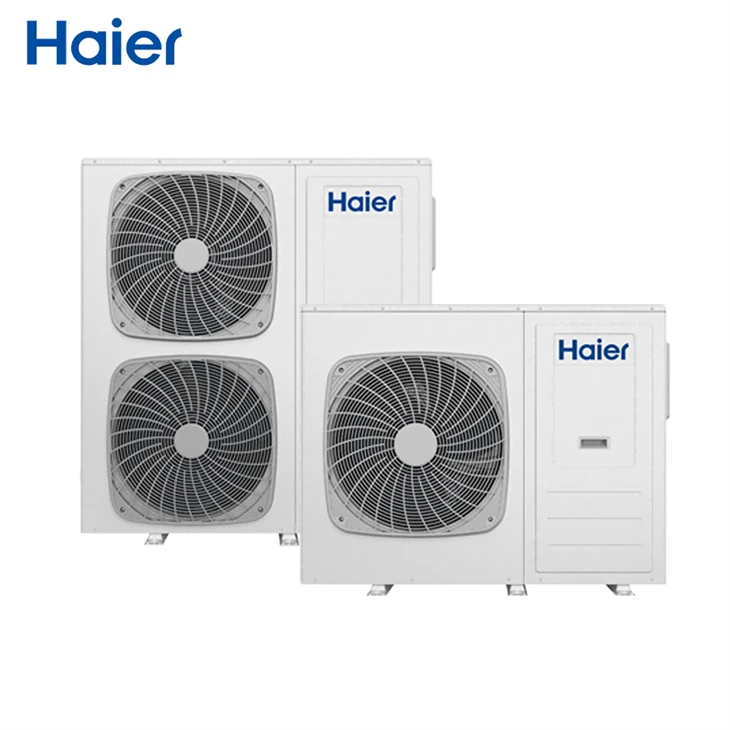

Product Description:

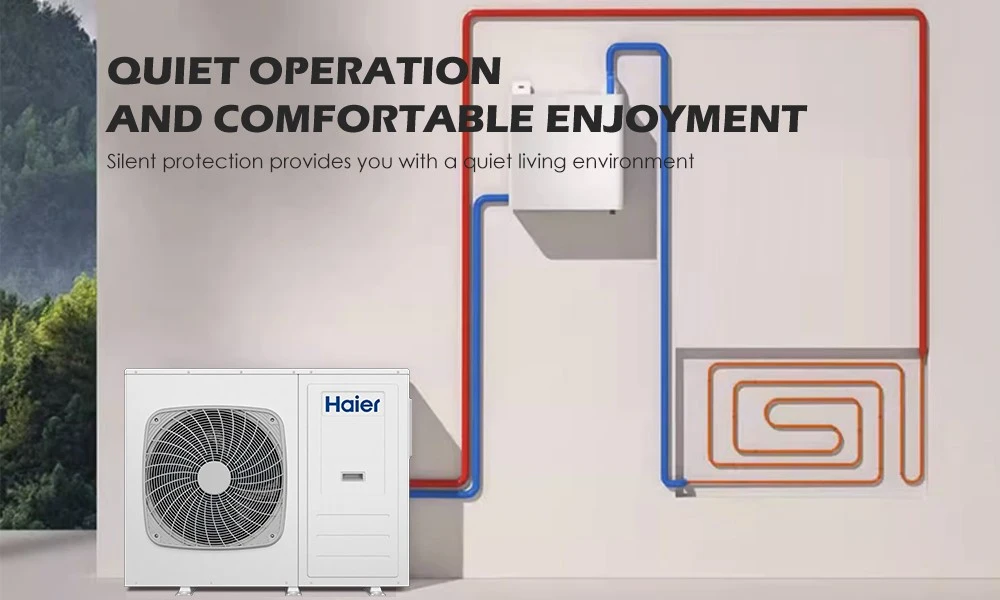

ProWarm* series heat pumps are the most popular environmentally friendly heat pumps for home heating and cooling. ProWarm* heat pump has low noise level and achieves high performance with low power consumption. The jet enthalpy increasing technology increases the refrigerant pressure in the compressor. The higher pressure results in higher heating capacity and heat exchange temperature. Paired with professionally designed brushless fan blades and noise reduction measures, the heat pump runs quieter.
Product parameters:
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
product details:

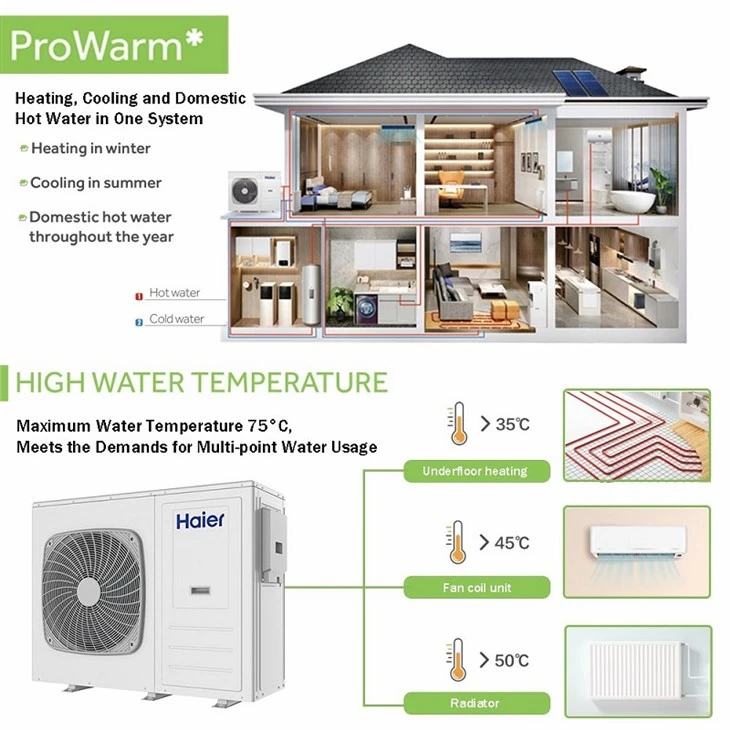

The maximum outlet water temperature is 75°C, meeting various terminal needs
Minimum ambient temperature -30℃, suitable for regional application

Multiple anti-freeze technologies such as water pump circulation, system circulation, and electric heating prevent the system from freezing.

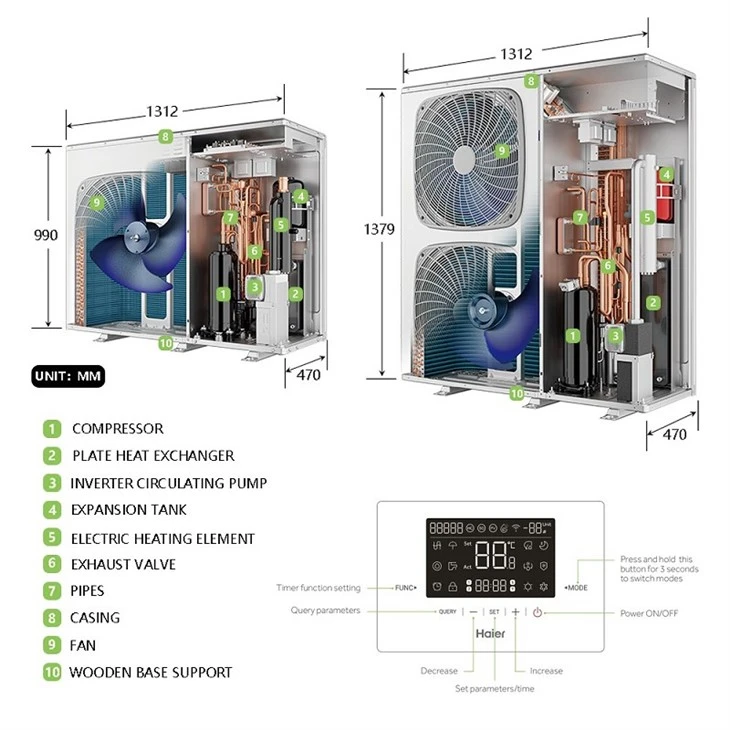

Product parts:

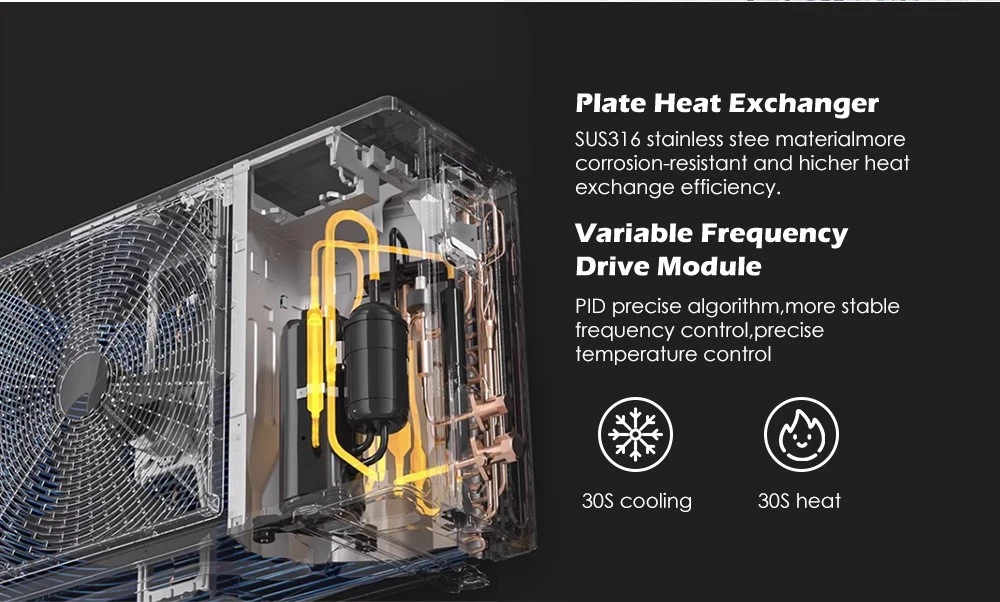

Inverter compressor: low ambient temperature: -30℃ stable heating
Exquisite shell: professionally designed curves, elegant and beautiful
Exquisite
Product energy saving principle:
The heat pump is a high-efficiency and energy-saving device that utilizes nature's low-temperature thermal energy and can effectively reduce carbon emissions and environmental pollution. Its principle is to absorb heat in a low-temperature environment through circulating refrigerant, and then release heat in a high-temperature environment to achieve various purposes such as heating, hot water, and air conditioning. Compared with traditional gas boilers and other equipment, heat pumps can save more than 50%-70% of energy and emit no pollution. They are the future direction of low-carbon and environmentally friendly development.


Certificate:
Our products have passed multiple certifications, including ERP, KEYMARK, CE, etc. Among them, BAFA certification can obtain local subsidy policies. For details, please contact our professional customer service.
Why choose us?
Our products are of excellent quality, reliable performance and long service life. In addition, we provide a series of product promotional materials to introduce our products to customers, and different warranty periods and contents for customers to choose from. Our after-sales service is excellent and can solve problems encountered by customers in a timely manner.
Dear end users, industry experts and business professionals, our products are top-notch, trust us, Haier environmentally friendly heat pumps are your best choice. Looking forward to working with you.
