Underfloor Heating for Heat Pump

Underfloor Heating for Heat Pump

Energy efficiency: A+++/A+++
Type: Variable frequency heat pump
Power: 8KW-16KW
Maximum outlet water temperature: 75℃
Send Inquiry
Description
Product Description:

product-1000-600

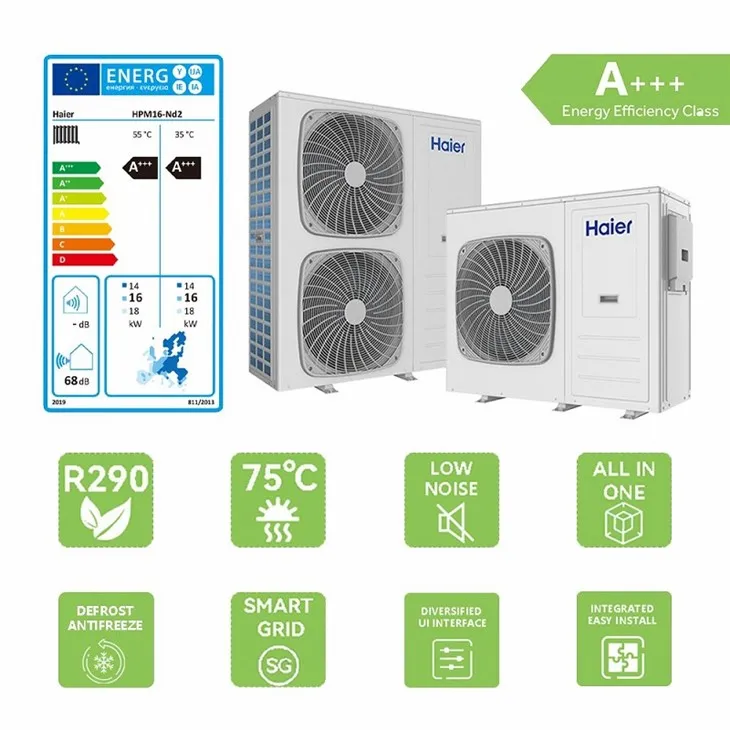

ProWarm* range of Underfloor heating for heat pump. Using the new refrigerant R290, which has little environmental pollution, and equipped with a frequency conversion module inside, it can perform excellent performance whether it is heating or cooling. It can operate stably in the harsh environment of -30℃. The system realizes integrated control of cooling and heating, can adjust and set the indoor temperature, and is simple and convenient to operate.



Product parameters:

Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



product details:



product-1000-596

The maximum water output from the unit is 75°C, which can meet the water temperature needs of different terminals. The product can be suitable for more users.

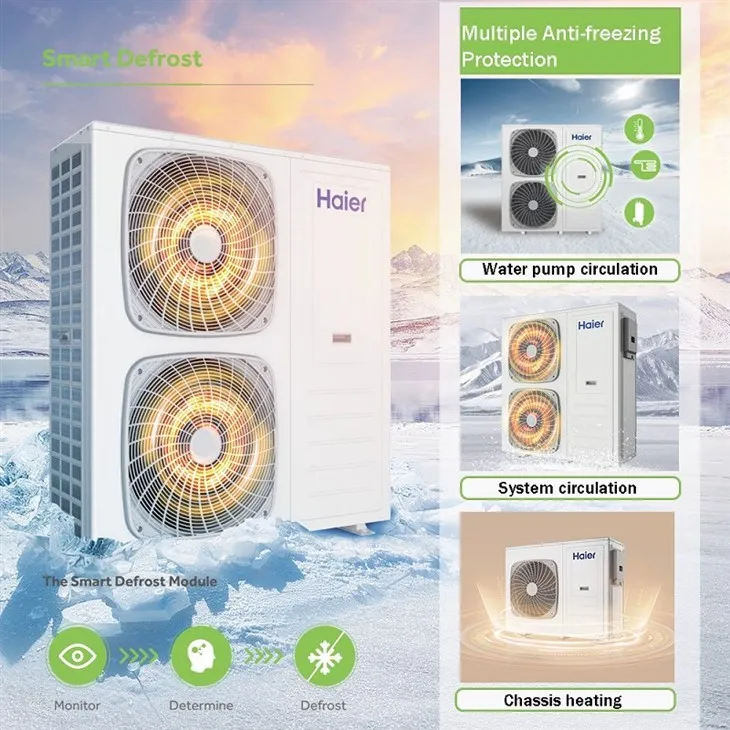

Minimum ambient temperature -30℃, suitable for regional application



product-1000-601

Silent: The machine runs at low frequency in the lowest noise mode



product-1000-595



Product parts:

product-1000-599

Variable frequency compressor: Automatically selects heating and cooling operation modes according to the ambient temperature, achieving fast and comfortable temperature control.

Plate heat exchanger: high heat exchange efficiency, small heat loss, compact and lightweight structure, long service life



product-1000-602

product-1000-600



Product energy saving principle:

The heat pump is a high-efficiency and energy-saving device that utilizes nature's low-temperature thermal energy and can effectively reduce carbon emissions and environmental pollution. Its principle is to absorb heat in a low-temperature environment through circulating refrigerant, and then release heat in a high-temperature environment to achieve various purposes such as heating, hot water, and air conditioning. Compared with traditional gas boilers and other equipment, heat pumps can save more than 50%-70% of energy and emit no pollution. They are the future direction of low-carbon and environmentally friendly development.

product-1000-600product-1000-600





Certificate:

product-1000-597

Our products have passed multiple certifications, including ERP, KEYMARK, CE, etc. Among them, BAFA certification can obtain local subsidy policies. For details, please contact our professional customer service.



Why choose brand products:

product-1024-845

Haier heat pump is a well-known brand in the field of home appliances. Its heat pump series products are very popular in the market and have the characteristics of high efficiency, energy saving, environmental protection and health. By choosing a Haier heat pump, you can not only enjoy a comfortable quality of life, but also contribute to environmental protection. We also provide comprehensive after-sales service to make consumers feel more at ease. Choose Haier heat pump to ensure the quality of life.
