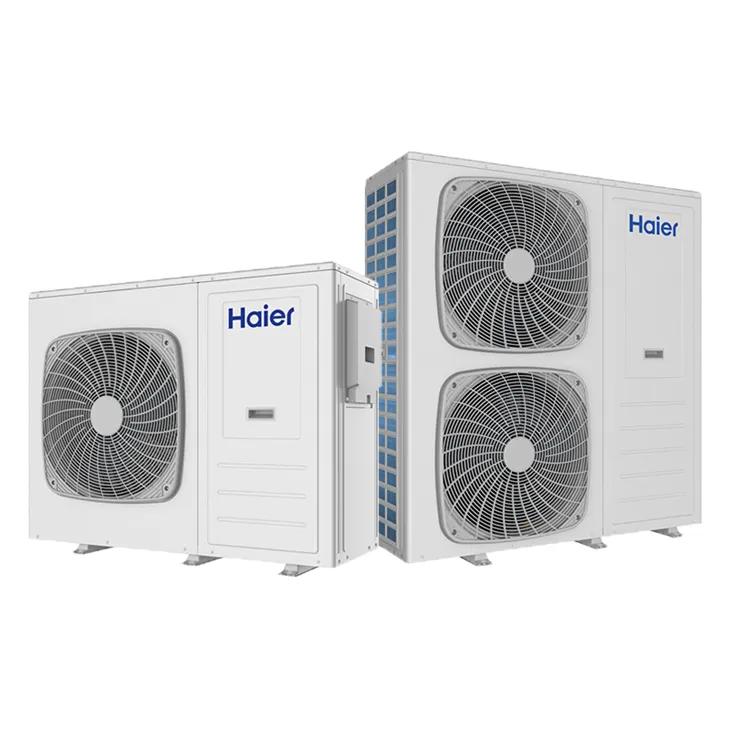

All-in-one heat pump is a heat pump that can meet all the heating, hot water, air conditioning and other needs of a home. In the traditional heating system, a variety of equipment is needed to meet the above requirements, but the one-machine multi-purpose heat pump system can realize intelligent control and can be easily controlled remotely through the mobile phone APP, so that the home temperature can be adjusted anytime and anywhere. It can also save space, save energy and reduce emissions, and bring a more comfortable and convenient experience to people's lives.
parameter
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|
Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Product feature
One machine has multiple uses. One machine can meet the needs of heating and cooling as well as hot water, making it convenient for users to use.
The product energy efficiency grade reaches double A+++, and the COP is as high as 5.1
Can be connected to smart grid, peak and valley power, photovoltaic power, etc.
Sterilization: In domestic hot water mode, the water tank is sterilized by default once a week (adjustable weekly/monthly)
Electronic expansion valve
Adiabatic throttling, sensitive action, wide adjustment range
Variable frequency drive module
Sanhua drive module, components are safe and reliable
working principle:
The heat pump is an efficient and energy-saving heating and cooling equipment. Its working principle is based on the principle of thermodynamics. It uses environmental heat sources such as air and ground heat to transfer low-temperature heat energy to high-temperature areas, thereby achieving indoor temperature control. In the heating mode, the heat pump absorbs low-temperature heat energy from the environment and releases high-temperature heat energy after compression, thereby increasing the indoor temperature; in the cooling mode, it absorbs indoor heat and releases it into the environment, thereby achieving indoor air conditioning. Heat pumps have the advantages of easy installation, energy saving, environmental protection, safety, reliability, and long service life. They are increasingly used in modern homes and commercial applications.
