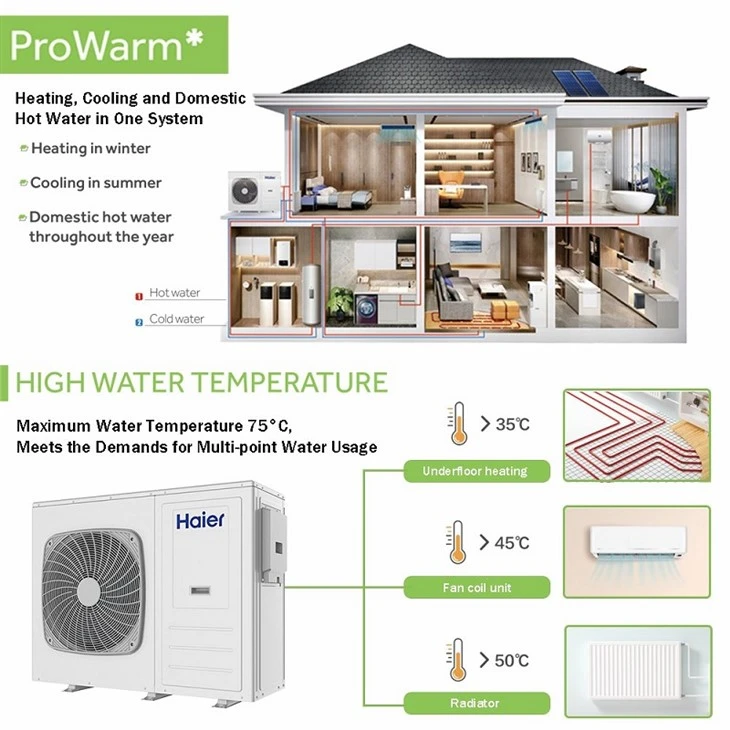

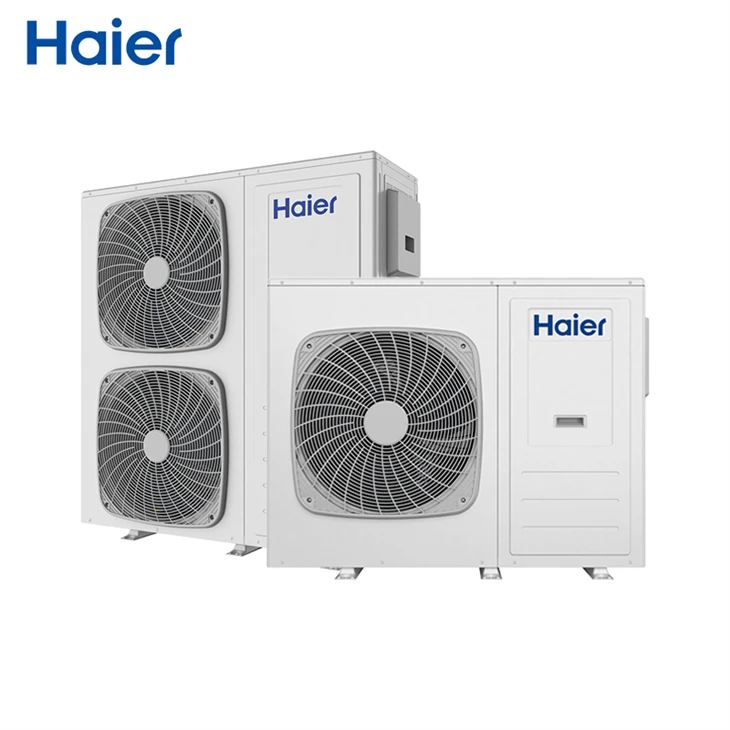

Domestic heat pump for Haier - full frequency conversion provides unparalleled comfort. Experience the ultimate in energy-efficient heating and cooling technology.One machine for two purposes, comfortable in all seasons.In winter, the floor heating is fast and constant temperature, and in summer, the air conditioner is like a spring breeze.Using aviation-grade sound insulation and noise reduction materials, the subwoofer operation is more comfortable.Frequency conversion saves energy, improves energy utilization efficiency, reduces energy loss by 70%, and reduces environmental pollution to the earth.
Product parameters
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|

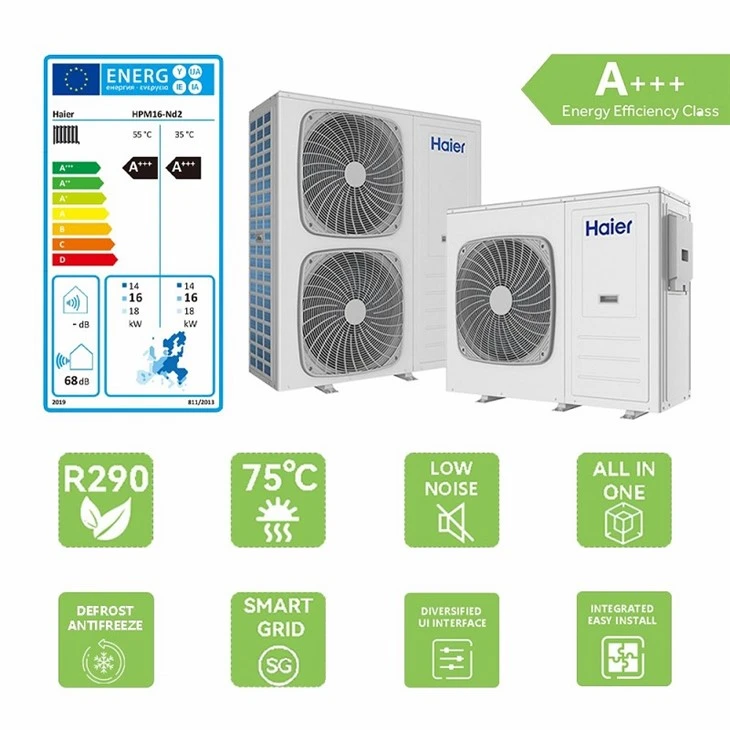

Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|

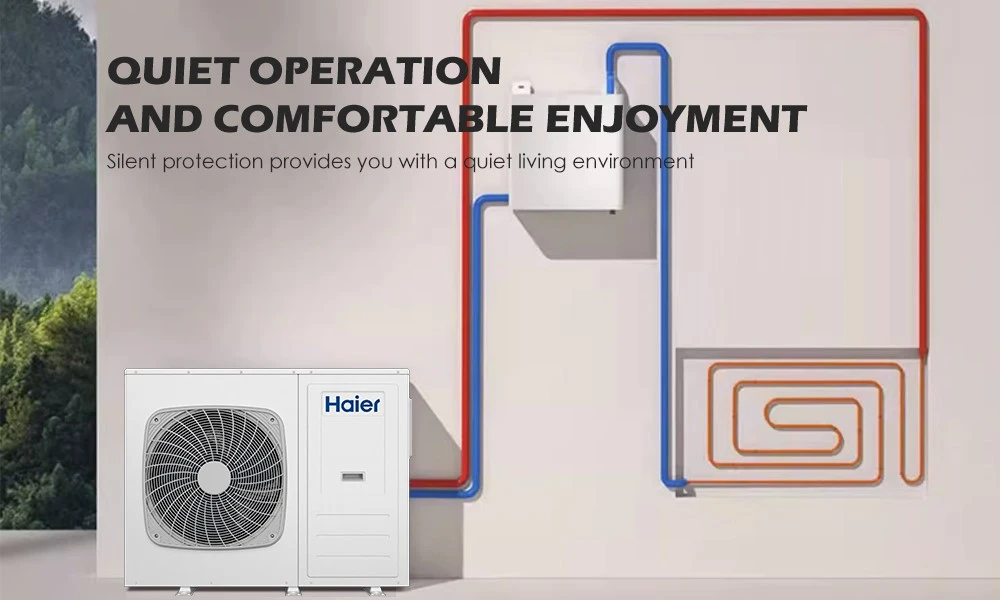

Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

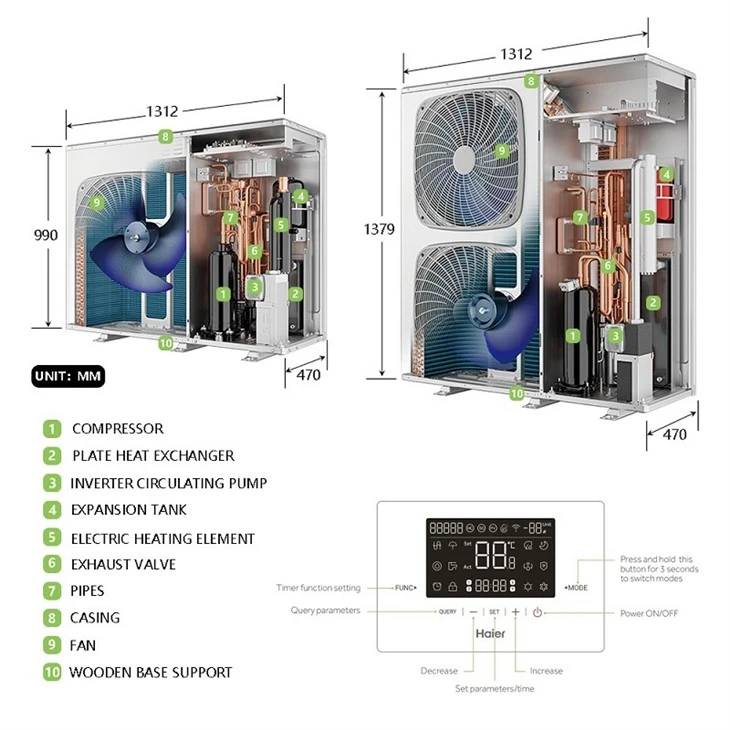

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Product details
Quality details contribute to a comfortable experience.

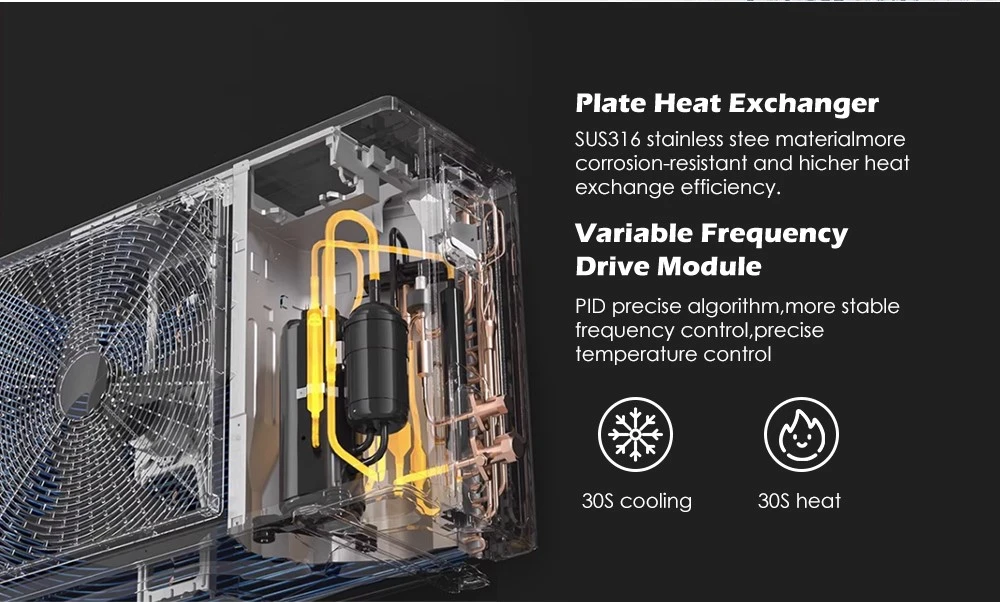

Power system:international well-known brand Heat pump dedicated compressor
Heat exchange system:SUS316 stainless steel material Higher heat exchange efficiency
Why choose us?
Haier is a company specializing in the production of air source heat pumps and is committed to providing customers with high-quality products. By choosing Haier, you will enjoy a high-quality experience, excellent performance and excellent service support.
We are a team focused on providing customers with the highest quality services. We always adhere to the concept of "customer needs-centered, professional, collaborative, and innovative" and work unremittingly to create higher value for customers. We always focus on collaboration and communication between teams to ensure that we can respond to customer needs in a timely manner and provide customers with the best quality service. We know that "integrity, service, innovation and professionalism" are the core values of our development to this day. No matter when and where, our team will be ready to provide customers with all-round, high-quality services, and constantly pursue excellent quality and service, making us the first choice brand trusted by customers. Choose us, you will get high-quality products and services, and get satisfactory experience and returns.
FAQ
Q:Does the heat pump unit need to use electricity when working?
A:It requires electricity and uses very little electricity to exchange heat from R290 to water.
Q:What are the advantages of heat pump units?
A:Heat pump unit heating is mainly reflected in high efficiency, energy saving, environmental protection and safety. The average annual operating cost of the heat pump unit is only 25% of that of electric direct heating, 30% of that of fuel oil, and 50% of that of gas heating.
Q:Can multiple heat pumps be connected in parallel?
A:OK. The air source heat pump unit has modular functions and operates on the grid. Each heat pump unit can be controlled independently. If there is a problem with one of the units, it will not affect the normal operation of the other units during maintenance.
Q:Can we install a heat pump ourselves?
A:absolutely okay. We will provide professional guidance videos or tutorials to help you install, which saves time and effort.
Q:Can you help us install it?
A:We can arrange for professionally trained installation masters to help you install it, so you don't have to worry about installation.
