Product introduction:

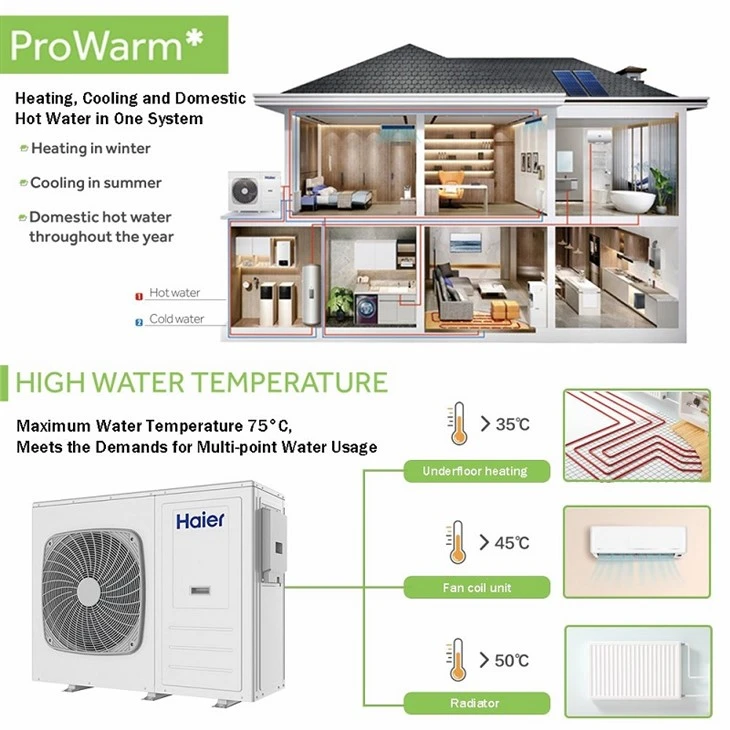

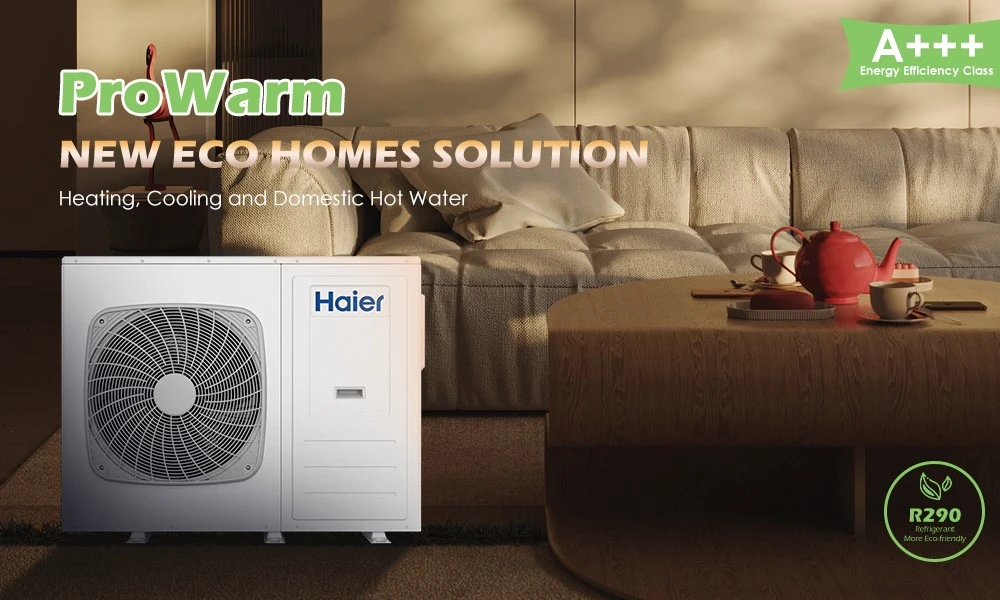

The latest air energy water heat pump technology can realize multiple functions such as air conditioning, heating, and hot water. The use of high-efficiency energy-saving technology can significantly reduce energy consumption, thereby achieving the effect of saving electricity and money. At the same time, this product uses environmentally friendly materials in the refrigerant selection, which does not cause any pollution to the environment. It is a safe and environmentally friendly product.
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

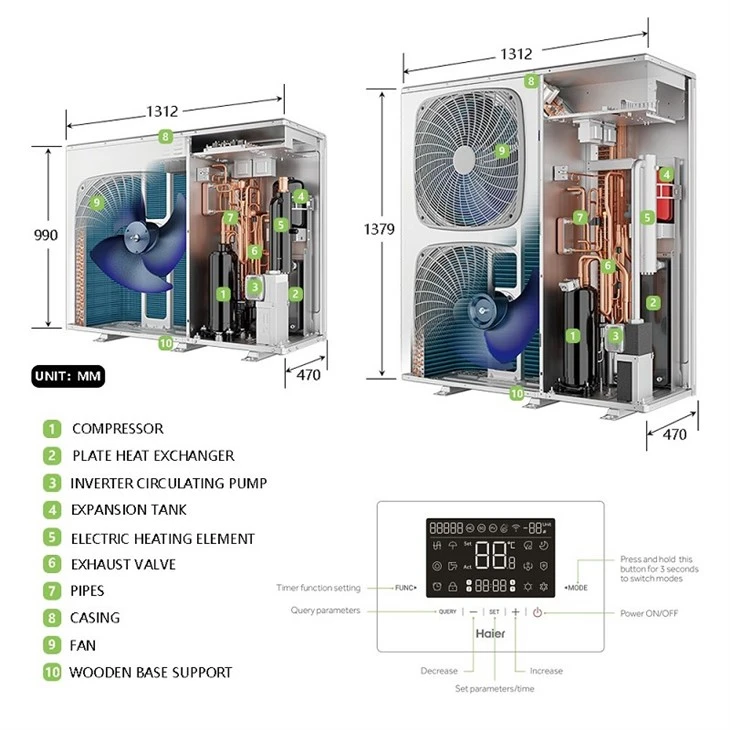

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
product details:
1. Noise control: Adopt noise control technology and operate silently.
2.High-precision heat exchange technology: effectively improve heat energy utilization

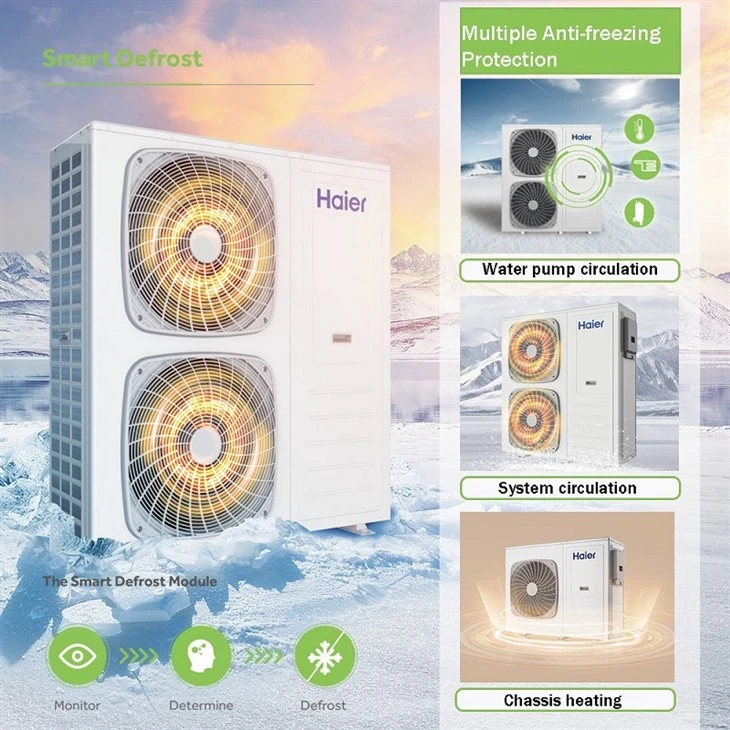

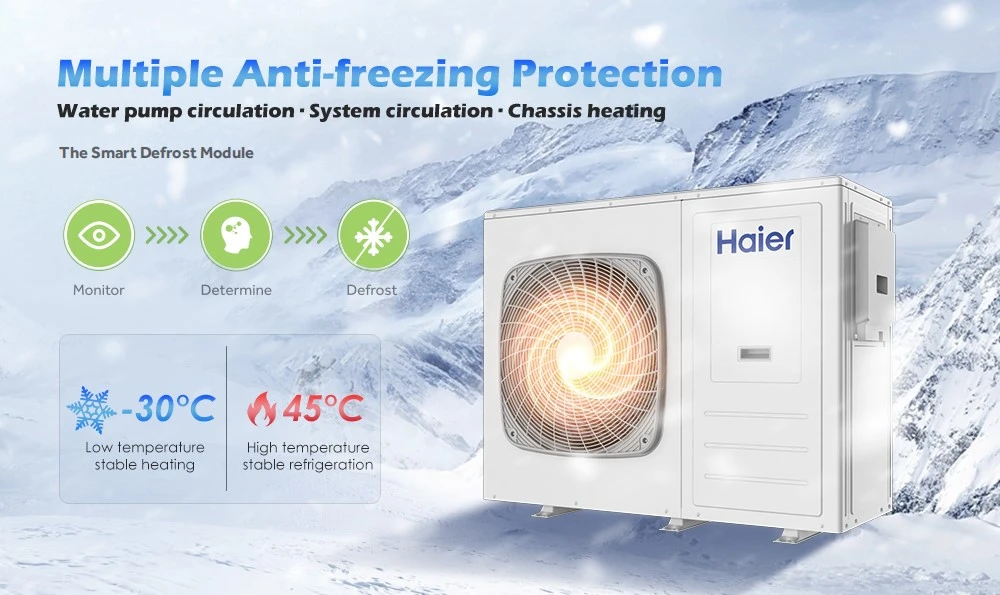

3. Automatic defrost: The machine automatically detects whether there is frost or not, and defrosts it if there is any.
Part features:

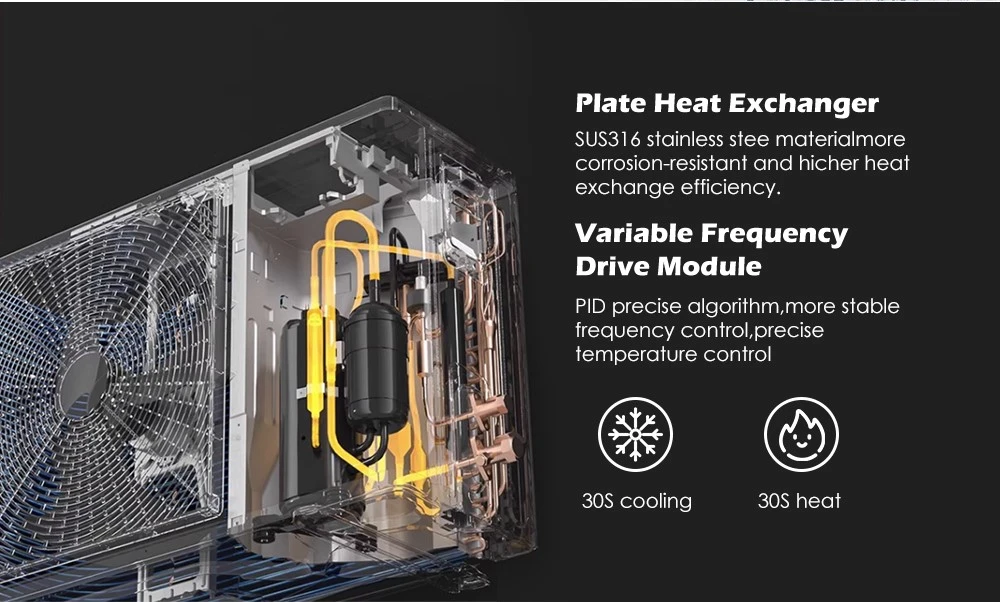

The internal pipeline components are made of all copper, which has excellent thermal conductivity and corrosion resistance, making the product's service life longer.
The product's compressor adopts new digital technology, and the intelligent control is more precise.
Why choose us:
We have warehouses in Germany to provide faster service and support to our customers. In addition, our new Haier heat pump has the characteristics of high efficiency, energy saving, environmental protection and safety, and has gained a good reputation in the market. We look forward to establishing long-term cooperative relationships with our customers and providing you with better products and services.
