R290 Air Source Heat Pump

R290 Air Source Heat Pump

R290 refrigerant
Space heating + cooling + hot water
Maximum water temperature is 75℃
Frequency conversion control panel
Energy saving
Send Inquiry
Description

product-1000-600

R290 air source heat pump is a brand-new refrigeration and heating product that uses environmentally friendly R290 refrigerant. It can not only meet the needs of air conditioning and heating, but also provide users with refrigeration and hot water services. The maximum temperature of water output is 75°C, allowing users to easily meet their household hot water needs, and a good frequency conversion control panel can also intelligently control temperature and electricity consumption according to users' actual needs.

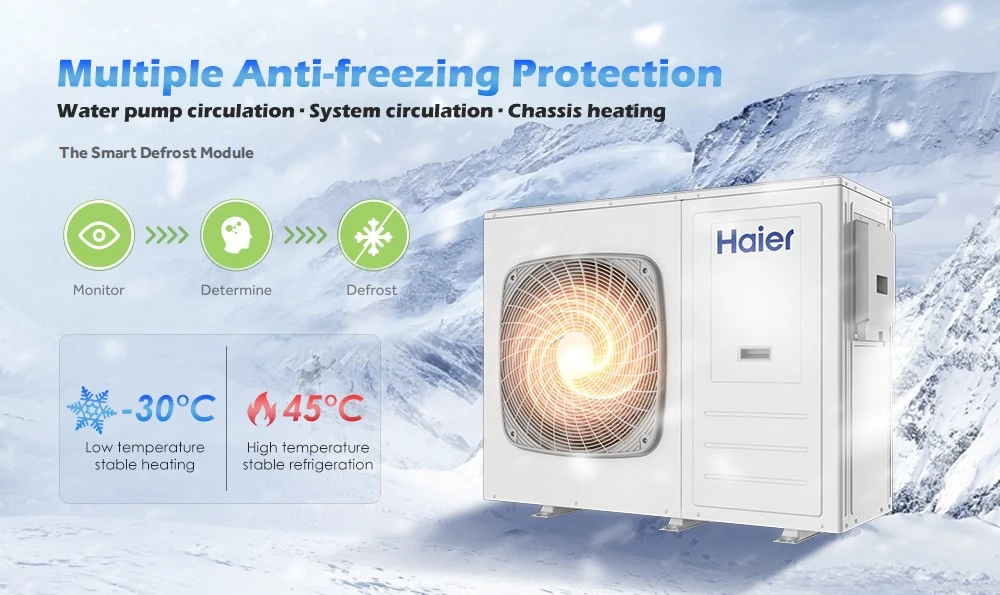

The 16kw air source heat pump is a very efficient and intelligent large-scale villa residential heating equipment. Its biggest feature is its powerful power, reaching 16kw, which can meet the various needs of users. In addition, the heat pump adopts a patented five-layer antifreeze system, which can operate stably in cold weather and is safe and reliable.



product-1000-596



Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



Product advantages



product-1000-595

Compared with traditional air conditioning and heating equipment, the R290 air source heat pump has obvious advantages. First of all, while ensuring indoor temperature, it greatly reduces energy consumption and saves users' electricity costs. The use of environmentally friendly R290 refrigerant also makes the entire equipment more environmentally friendly and has less impact on the environment. Secondly, as a new energy source of air energy, the R290 air source heat pump can also utilize the low-temperature heat energy of the surrounding environment during use, thereby further reducing electricity costs and impact on the environment.



product-1000-601

In terms of adaptability, the R290 air source heat pump is very suitable for home users, providing users with an air energy new energy device that is efficient, energy-saving, environmentally friendly and rich in functions. With the continuous development and improvement of technology, the application scope of R290 air source heat pump is also expanding. As a brand new, efficient heating equipment, it will definitely bring you a comfortable home life.



product-1000-600

product-1000-600

product-1000-600

product-1000-602

product-1000-599





Haier company introduction:

Haier, founded in 1984, is a world-renowned enterprise. With smart living and industrial Internet as its main businesses, the company strives to create a comfortable and smart living environment for global users. It has won many honors in the electrical appliance industry. As of 2021, it has been rated as the world's No. 1 home appliance brand by Euromonitor International for 13 consecutive years. In 2023, Haier ranked among the top 100 most valuable brands in the world by BrandZ for the fifth consecutive year. These fully prove Haier's serious attitude towards the market and its spirit of excellence.



quality control:

The production of R290 air source heat pump needs to follow a standardized process. During the production process, relevant production standards and quality requirements should be strictly adhered to, and effective management and monitoring should be carried out to ensure the production of qualified products.

Secondly, the quality test of the heat pump is also a very critical link. During the production process, various appropriate testing methods should be used to detect various indicators of the product to ensure that all indicators of the product meet the specified quality standards. This requires high-end equipment and technology to ensure.

Finally, product quality can be monitored by implementing quality surveys and customer feedback. If any problems or deviations are found in the product, the manufacturer should solve the problem as soon as possible and ensure that similar problems will not recur, thereby providing customers with better quality assurance.



product-1000-597
