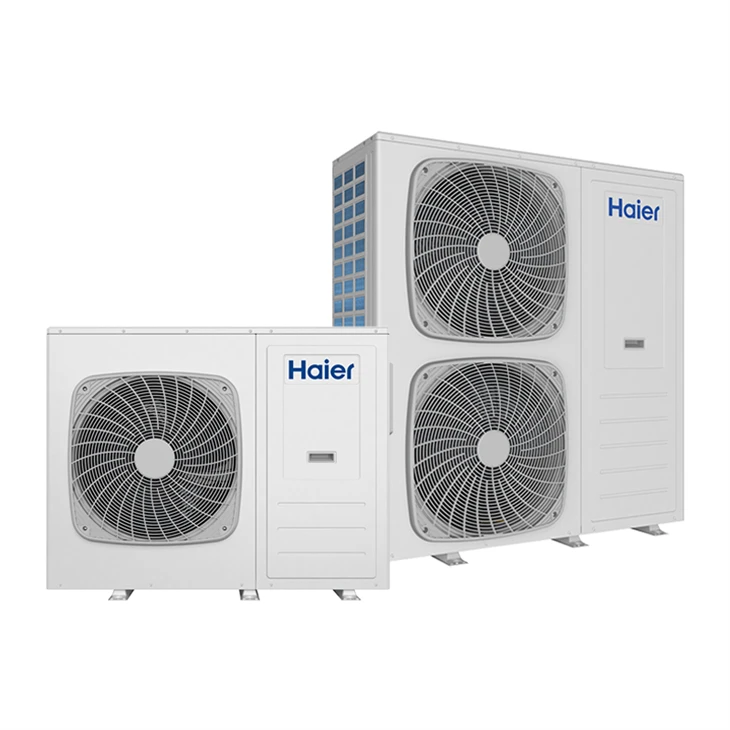

The instant heating heat pump has a pure white appearance and has excellent performance in the air source heat pump cooling and heating system. Its energy grade is A+++, which has the advantage of high efficiency and energy saving. It not only brings us an excellent heating experience in winter, but also provides us with a fast and refreshing cooling experience in hot summer.
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

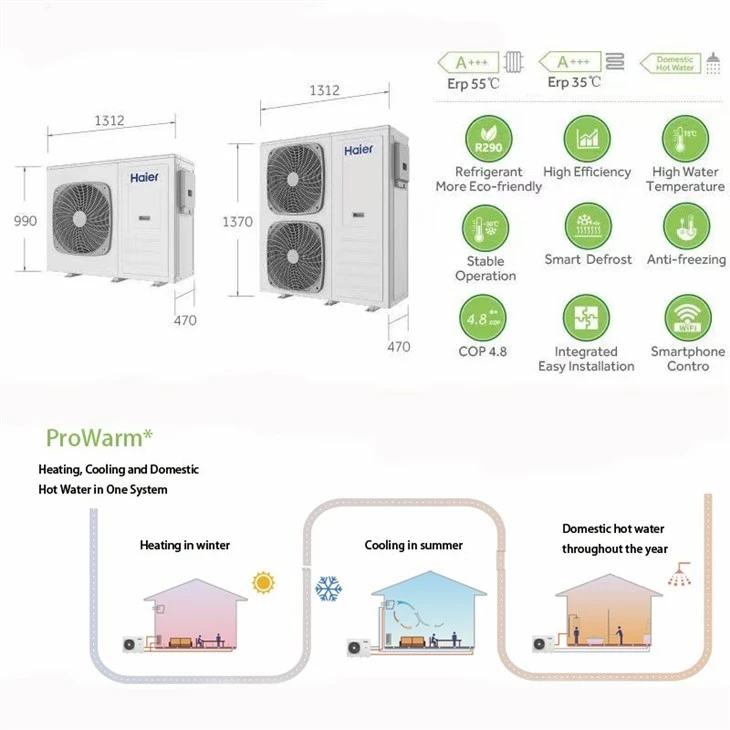

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |

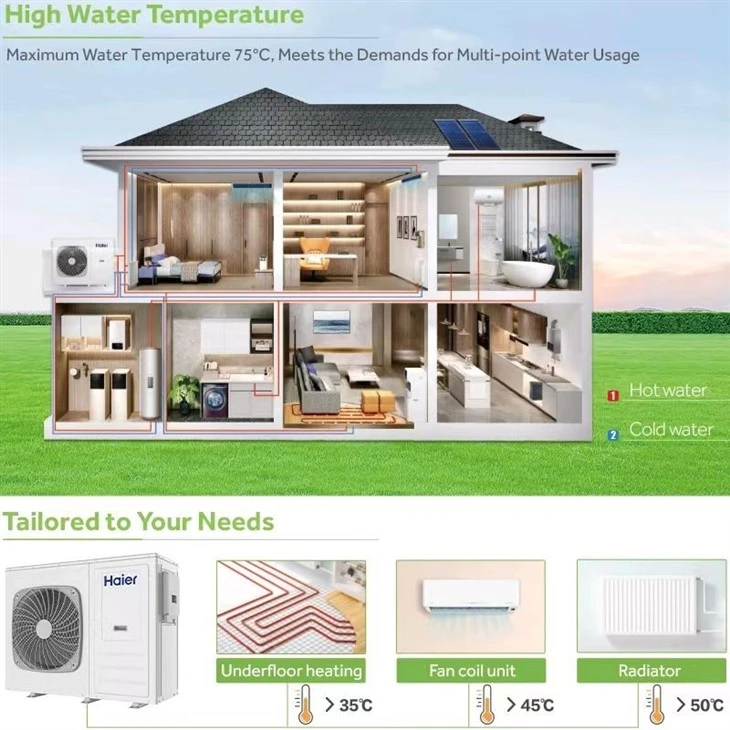

24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Product advantage

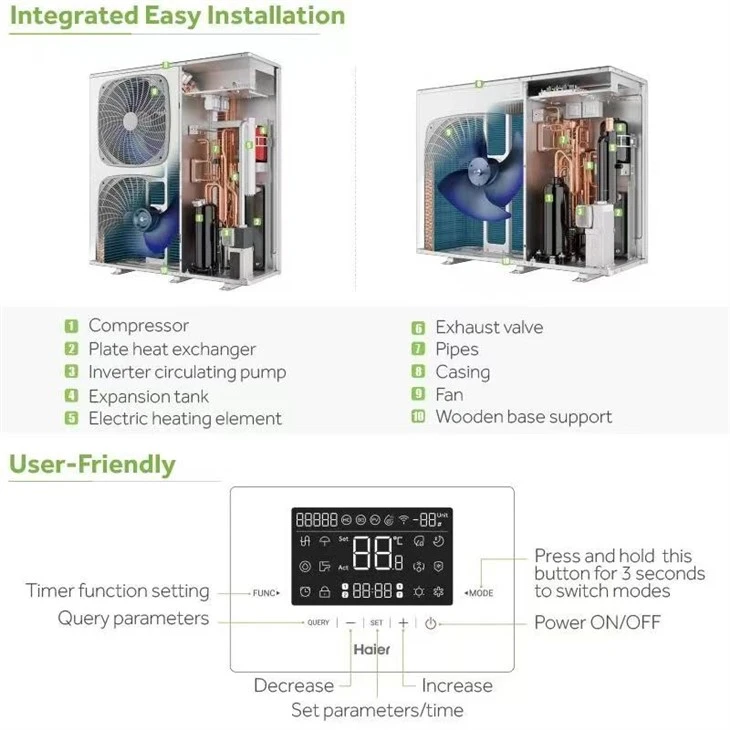

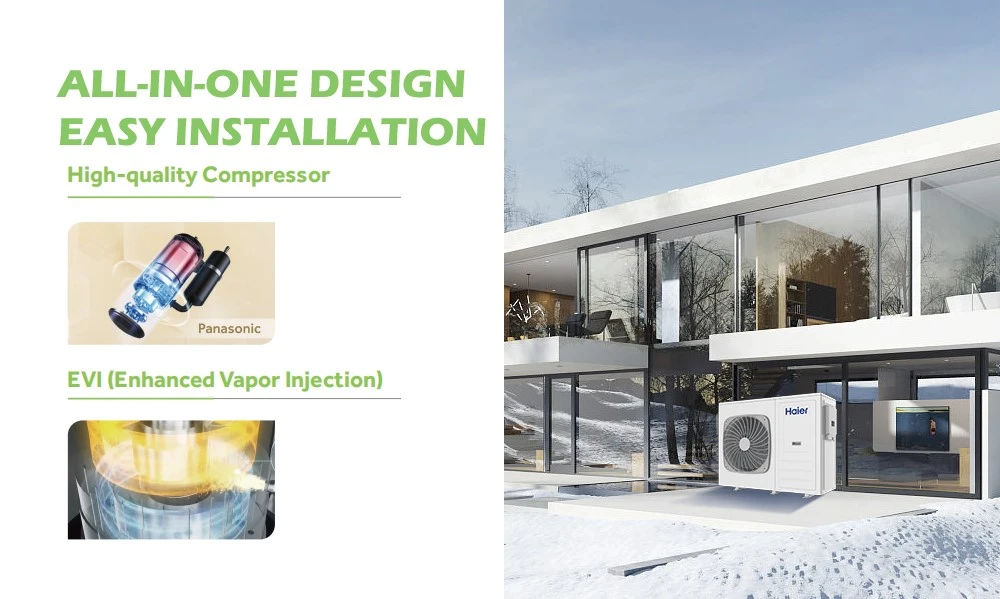

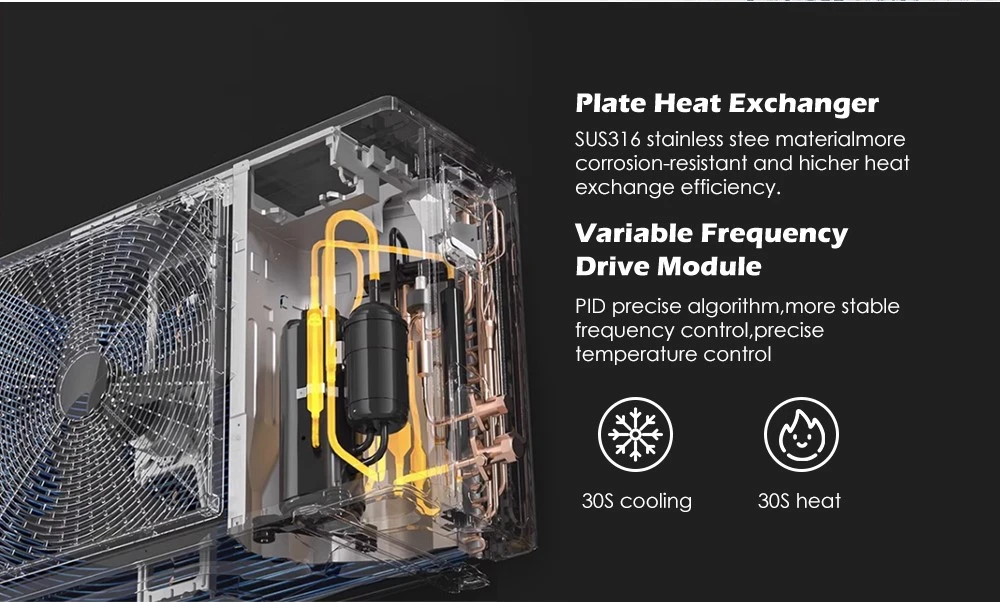

Our products are equipped with a straight-through variable frequency compressor with a wide operating frequency range, an electronic expansion valve that adjusts various loads and flows with higher precision, a straight-through variable frequency fan, a straight-through variable frequency water pump circulation, and a stepless control experience brought by plate heating. The heat exchanger is more efficient, taller and smaller in size.

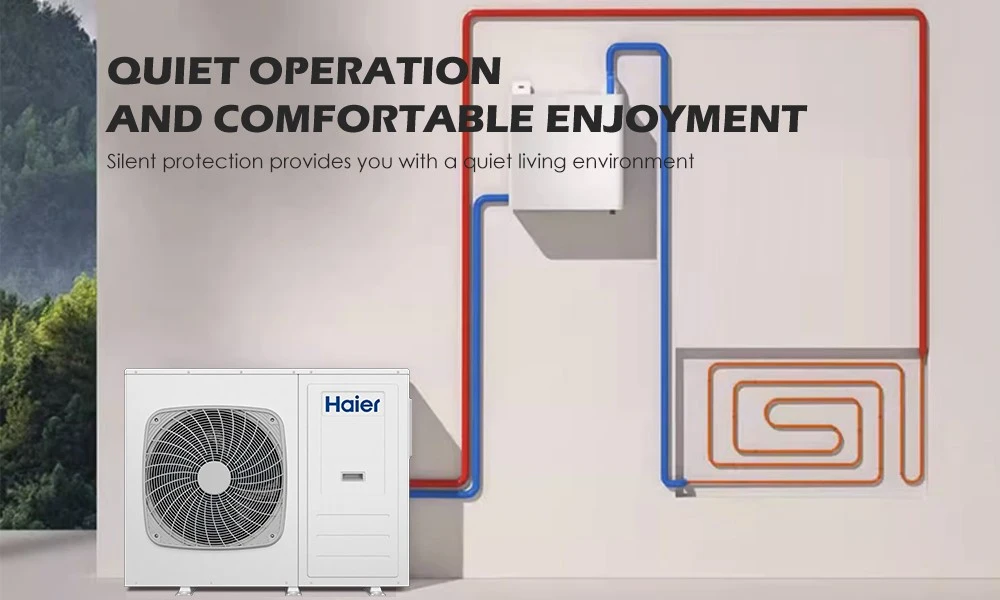

The biggest highlight of this product is its integrated integration of convection air conditioning cooling and floor radiant heating. As the temperature changes, the system can automatically adjust accordingly at any time according to indoor temperature needs, so that the temperature in the home is always maintained at the required level. Within the temperature range, users can enjoy use more comfortably.
Compared with the traditional multi -connected gas wall -mounted boiler, instant heating heat pumps not only achieve integrated control of cooling and heating, but also can grasp the setting of indoor temperature, allowing you to completely get rid of other redundant devices such as gas and water pipes. It is more convenient to operate.
quality control:
In the production process of heat pumps, in order to ensure the quality and performance of each heat pump, we have established strict quality control standards during the production process. From the beginning of the procurement of raw materials, we must strictly control the raw materials and conduct necessary inspections to ensure the quality of the raw materials. The quality meets the requirements. During the production process, each process must undergo strict inspection to ensure that every link meets quality standards. At the same time, the factory is equipped with professional quality inspection personnel and related testing equipment to ensure that the quality of products meets standards before leaving the factory.
Policy benefits：
There are many policy subsidies for installing air source heat pumps in Germany. If you want to know more, please contact us.
