Air source heat pump is an emerging green and environmentally friendly technology in today's society. It can make full use of natural energy in the environment to achieve multiple functions of heating, cooling, and domestic hot water, bringing people a comfortable living experience. The ultra-efficient heat pump is a leader among air source heat pumps. It uses R290 refrigerant, which can adjust the temperature of the home to an ideal state while reducing energy consumption to achieve energy conservation and environmental protection.
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

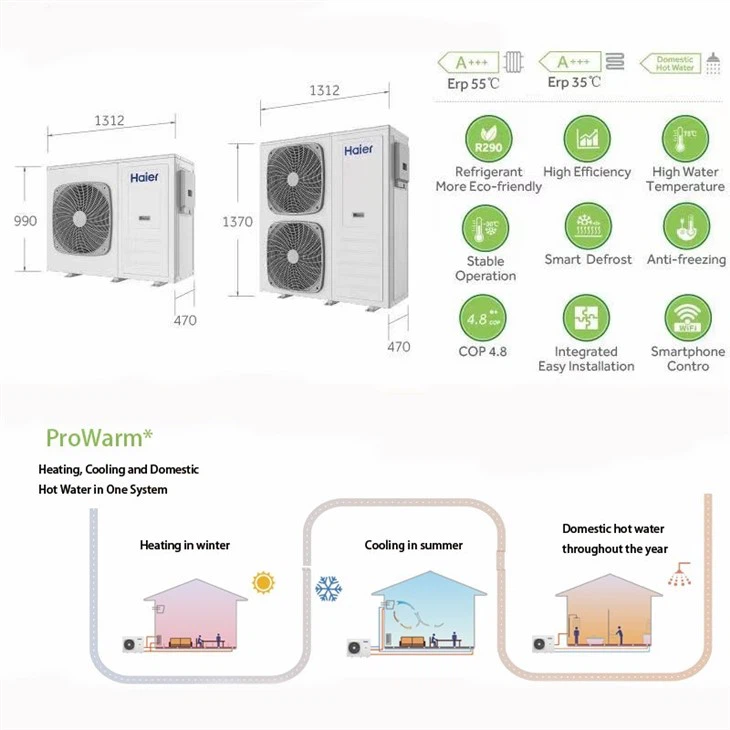

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Features:
The heating function of the ultra-efficient heat pump is excellent, and the maximum outlet water temperature can reach 75°C, which means it can provide you with a warm and comfortable atmosphere even in the cold winter. At the same time, it can also provide you with a cool and comfortable cooling effect in summer, easily resisting the scorching heat of summer.
In terms of energy efficiency, the ultra-efficient heat pump has reached the A+++ grade, which is one of the highest energy efficiency grades on the market. It can be said to be very energy-saving and environmentally friendly. Its working temperature range is also very wide, and it can adapt to the working area from -30℃ to 45℃, allowing you to enjoy comfortable temperatures in different seasons and different areas.
Function:
Silent mode: enter low-frequency operation at night
Peak and valley power mode: Utilize valley power for heating to achieve energy saving effect
Smart grid: automatic identification to achieve energy saving effect
Energy saving mode: The system operates in a high energy efficiency mode
brand introduction:
Haier is a leading supplier of energy-saving heat pumps. With a strong commitment to sustainable and environmentally friendly solutions, we have developed a powerful and energy-efficient product portfolio. Our integrated air source heat pumps, available in a variety of models, stand out for their high energy efficiency and ease of installation. They use environmentally friendly refrigerant R290 and come with a 6-year warranty. When you choose Haier, you choose quality, reliability and sustainability.
