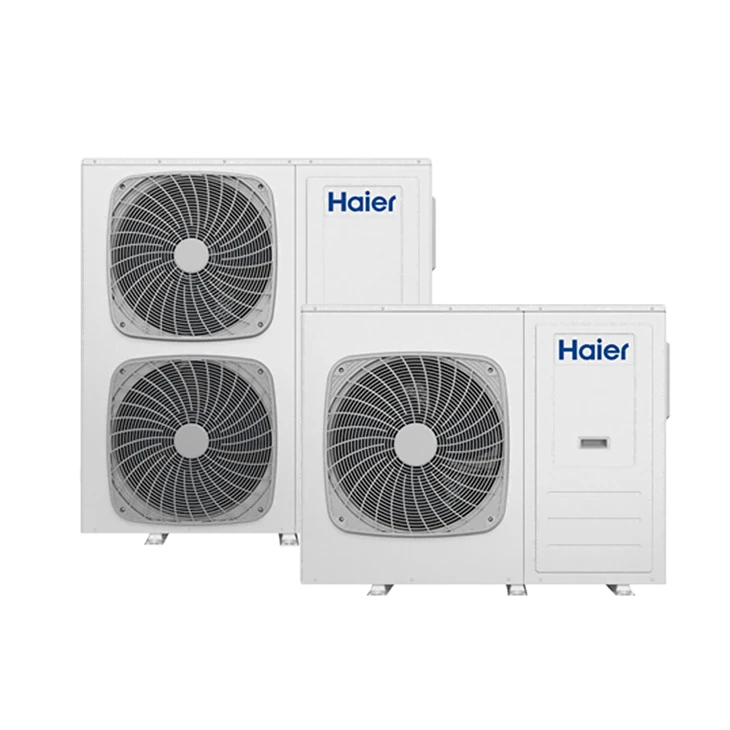

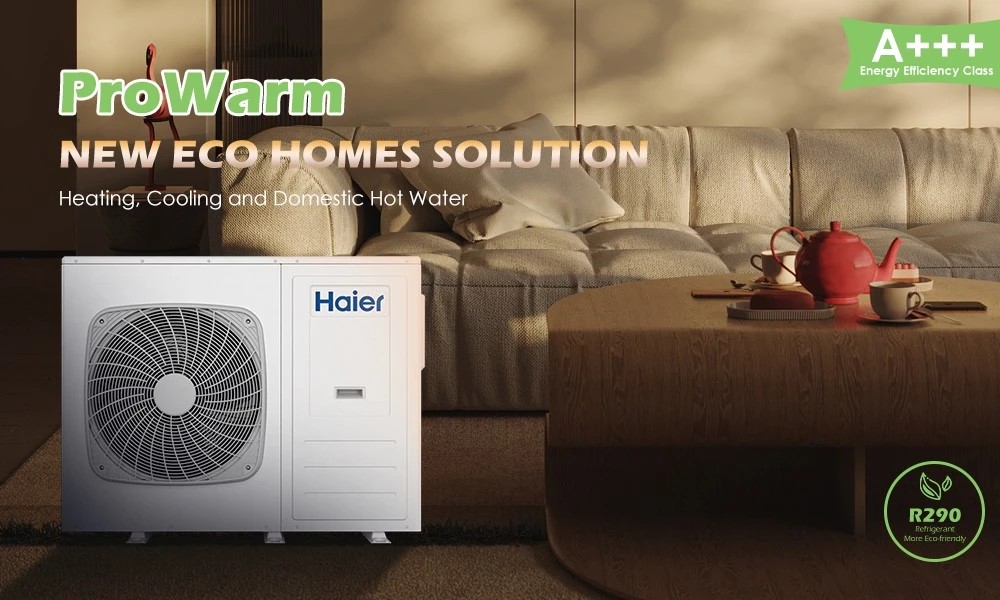

With the continuous improvement of energy consumption and environmental protection awareness, more and more families are beginning to choose more energy-saving and environmentally friendly home appliances. Haier has recently developed an energy-saving heat pump. This energy-saving heat pump not only meets users' needs for comfortable living, but also complies with consumers' increasing pursuit of low-carbon and environmental protection.

|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

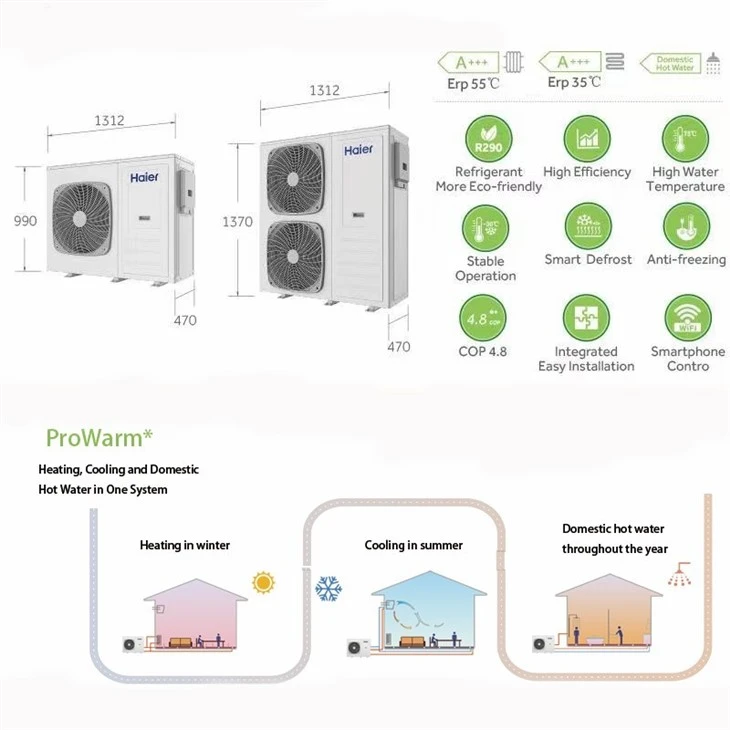

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Features:
As a double A+++-rated product, the energy-saving heat pump has a COP value of 5.1, which is several times higher than that of traditional heating equipment. This means that users will greatly reduce energy consumption when using energy-saving heat pumps, thereby enjoying a more environmentally friendly and healthy heating and cooling experience. At the same time, the product's intelligent frequency conversion technology also ensures that the product can automatically adjust power in different environments to achieve fast and efficient heating and cooling.

In order to further enhance the user experience, we used multiple noise reduction materials in the design process to achieve low-noise operation. This not only makes the product quieter and more comfortable during use, but also reduces interference from external noise, further improving environmental quality.

In addition, energy-saving heat pumps also excel in their whole-home heating and cooling capabilities. Traditional HVAC products tend to only focus on local indoor comfort, while energy-saving heat pumps can evenly distribute temperature throughout the home, thereby achieving whole-house heating and cooling effects. Not only that, it can also switch between multiple operating modes to meet the different needs of users.




Product Maintenance:

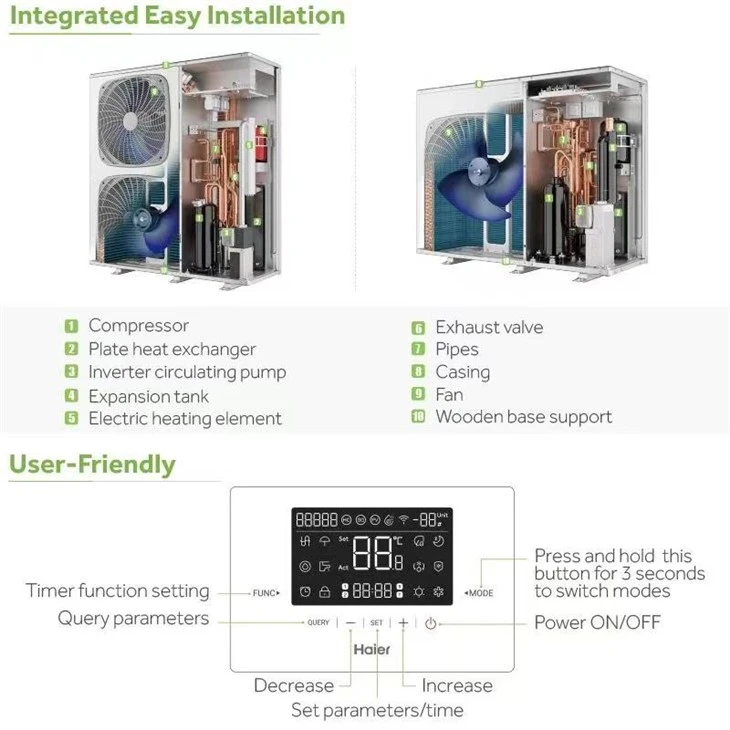

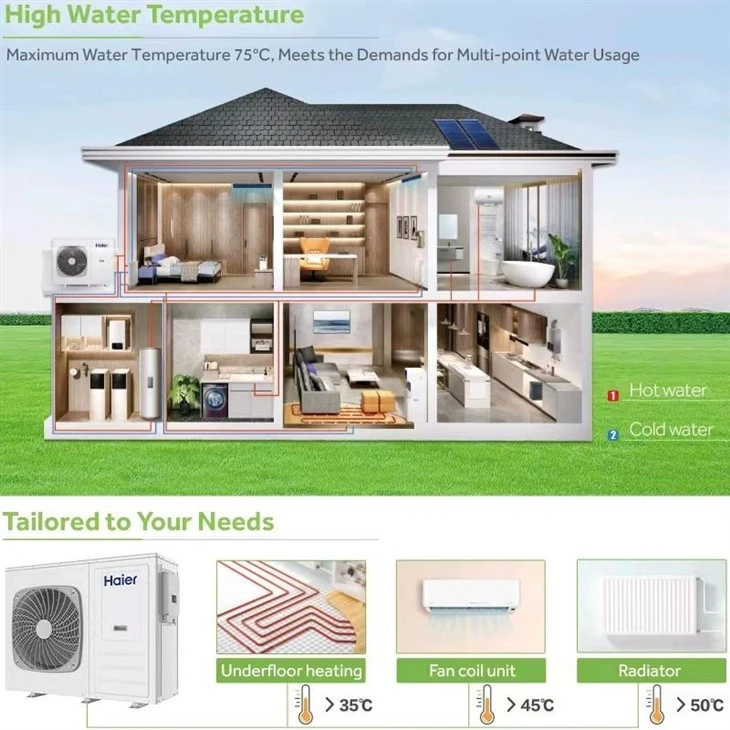

The one-piece unit is designed with ease of installation and maintenance in mind. The internal components of the heat pump are accessible via easily removable side panels, which greatly simplifies installation and maintenance, saving time and effort. This simple solution is ideal for replacing a boiler and combining it with a water heater, air conditioner, underfloor heating. It also saves space, since the water tank only needs to be installed in the technical room. The heat generated by the heat exchange between the outdoor unit and the outdoor air is transferred to the indoor unit to provide heating and hot water.
FAQ:
1. What are the advantages of choosing an air source heat pump?
Free hot water 24 hours a day
Whole house cooling and heating
Zero pollution, environmental protection and safety
National policy subsidies
2. Where is the best place to install the air source heat pump?
Heating efficiency is higher in the south and facing the sun.
It is best to install the host on the south wall or sunny side, so that the heating efficiency will be higher. The north wind is strong in winter. If it is installed in the north, it will affect the normal exhaust of the heat pump. The ambient temperature around the unit will be relatively low and the thermal efficiency will be relatively low.
