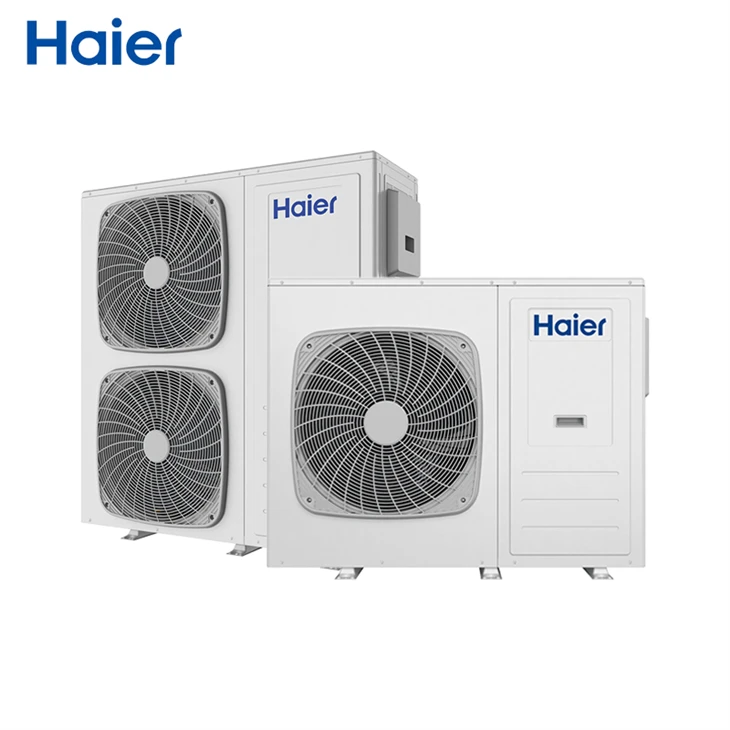

Haier's low-noise heat pump is one of the representatives of smart homes. It has multiple noise suppression systems, smart remote controls and other humanized designs, bringing users a new experience of low noise, quietness and comfort.
|
Model |
HPM |
HPM |
HPM |
HPM |
HPM |
||
|
08-Nd2 |
10-Nd2 |
12-Nd2 |
14-Nd2 |
16-Nd2 |
|||
|
Intended use of the units |
Low and medium temperature application |
||||||
|
Power supply |
V / Ph / Hz |
220-240/1/50 |
|||||
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
1.62 |
2.08 |
2.45 |
2.74 |
3.25 |
|
|
COP |
kW/kW |
4.95 |
4.8 |
4.9 |
5.11 |
4.92 |
|
|
Heating |
Capacity |
kW |
8 |
10 |
12 |
14 |
16 |
|
Rated power input |
kW |
2.42 |
3.03 |
3.43 |
4.24 |
5 |
|
|
COP |
kW/kW |
3.3 |
3.3 |
3.5 |
3.3 |
3.2 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
1.63 |
2.15 |
2.78 |
2.74 |
3.33 |
|
|
COP |
kW/kW |
4.9 |
4.65 |
4.1 |
5.11 |
4.8 |
|
|
Cooling |
Capacity |
kW |
8 |
10 |
11.4 |
14 |
16 |
|
Rated power input |
kW |
2.5 |
3.33 |
4.07 |
4.52 |
5.51 |
|
|
COP |
kW/kW |
3.2 |
3 |
2.8 |
3.1 |
2.9 |
|
|
SCOP |
Average climate |
35℃ |
4.9 |
4.9 |
4.9 |
5.2 |
4.9 |
|
Average climate |
55℃ |
3.85 |
3.85 |
3.85 |
3.9 |
3.9 |
|
|
Season space heating energy efficiency class |
Average climate |
35℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
Average climate |
55℃ |
A+++ |
A+++ |
A+++ |
A+++ |
A+++ |
|
|
SEER |
Fan coil application |
7℃ |
4.5 |
4.5 |
4.5 |
5.1 |
5.1 |
|
Cooling floor application |
18℃ |
6.3 |
6.5 |
6.2 |
7.0 |
7.0 |
|
|
Refrigerant |
Type |
- |
R290 |
||||
|
Charge |
kg |
1.3 |
1.3 |
1.35 |
1.95 |
1.95 |
|
|
E-Heater Backup |
kW |
3.0 |
3.0 |
3.0 |
6.0 |
6.0 |
|
|
Sound Pressure(1m) |
dB |
45 |
49 |
51 |
51 |
51 |
|
|
Water pump |
Rated water flow |
m3/h |
1.38 |
1.72 |
2.06 |
2.41 |
2.75 |
|
Total water head |
m |
12.5 |
12.3 |
12 |
11.5 |
11.1 |
|
|
Available water head |
m |
9 |
8.8 |
8.5 |
8 |
7.6 |
|
|
Maximum working pressure of refrigerant |
Mpa |
0.85/3.2 |
|||||
|
Water side safety valve |
Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Water proof grade |
/ |
IPX4 |
|||||
|
Water side connection |
in |
1 |
1 |
1 |
1 |
1 |
|
|

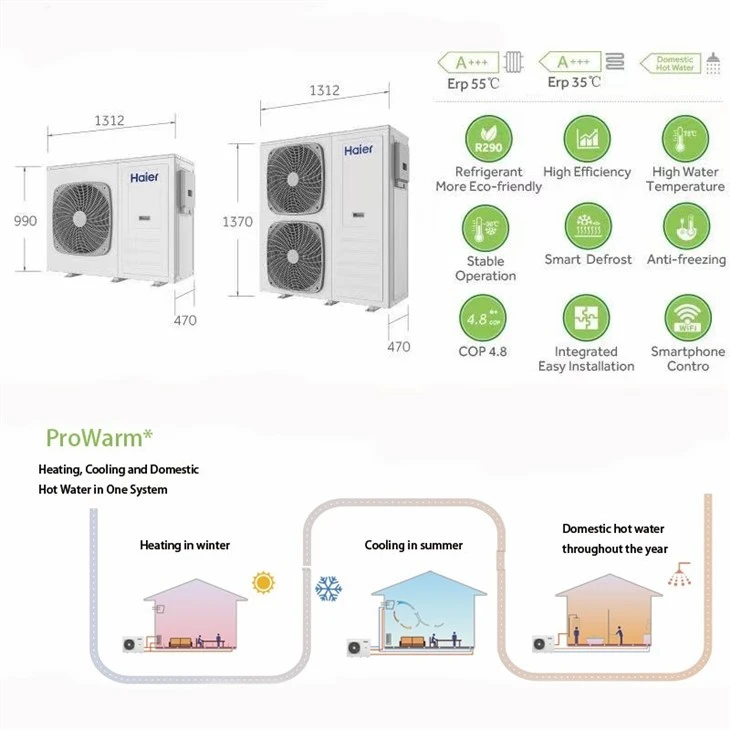

Net dimension |
W*D*H |
mm |
1312x470x990 |
1312x470x1370 |
|||
|
Package dimension |
W*D*H |
mm |
1362x567x1167 |
1362x567x1560 |
|||
|
Ambient temperature range |
Cooling |
℃ |
10-48 |
||||
|
Heating |
℃ |
-30-35 |
|||||
|
DHW |
℃ |
-30-43 |
|||||
|
Leaving water temperature range |
Cooling |
℃ |
5-25 |
||||
|
Heating |
℃ |
24-75 |
|||||
|
DHW |
℃ |
30-60 |
|||||
Product feature

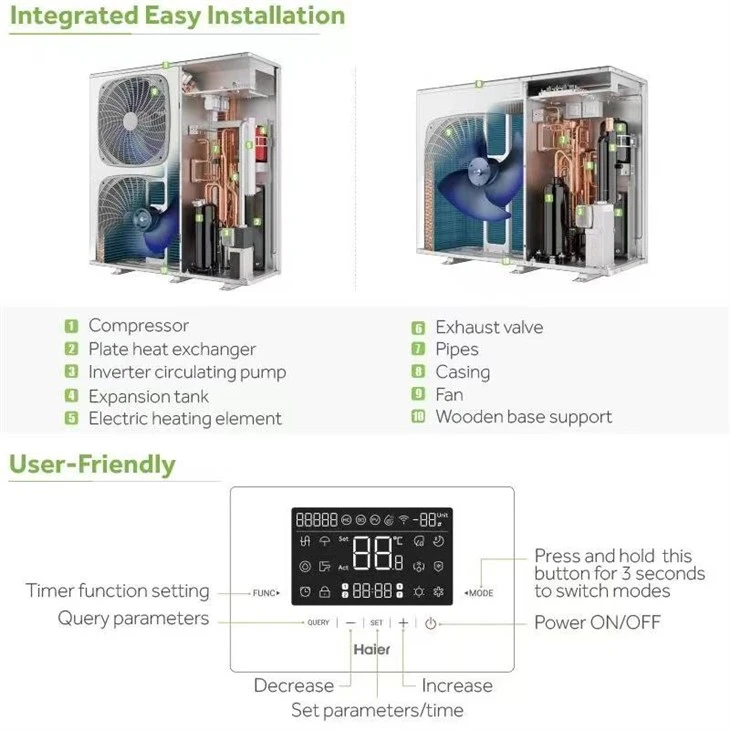

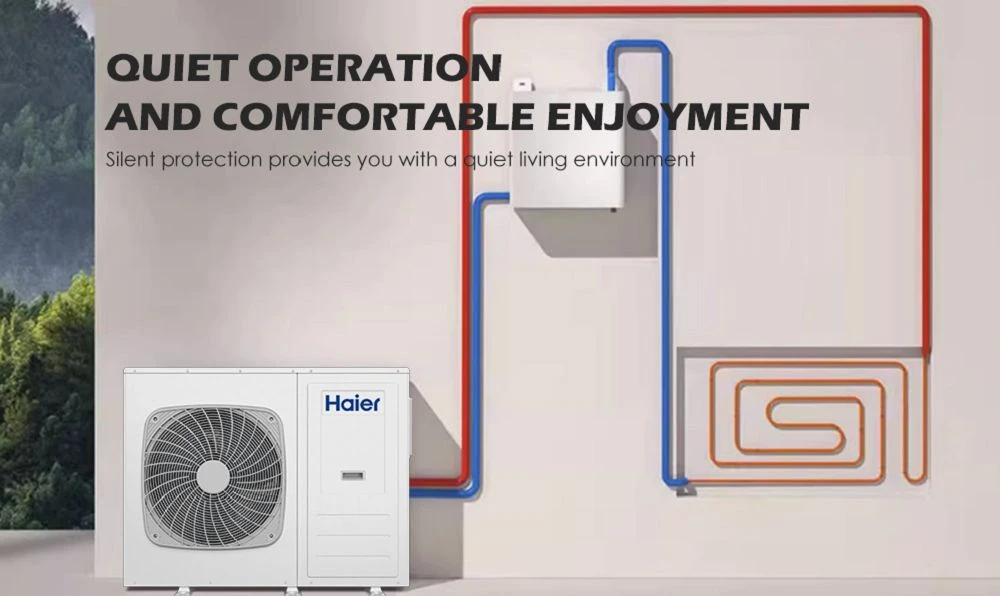

Haier's low-noise heat pump uses aviation-grade sound insulation and noise reduction materials, bionic wing large-diameter fans and other multiple noise reduction systems, which can effectively reduce noise and create a quiet and comfortable home environment. At the same time, the heat pump is also equipped with an intelligent remote control system. Users can monitor changes in the home environment in real time through the mobile phone APP and control panel, and select the operating mode as needed. It is an excellent choice for smart homes. In addition, the heat pump also uses a dedicated heat pump compressor and an intelligent temperature control system to ensure the stability of the system. The maximum outlet water temperature reaches 75°C, giving users a more comfortable living experience.
FAQ
1. How many types of heat pumps are there?
Heat pumps can be divided into air source heat pumps, water source heat pumps and ground source heat pumps according to their types.
2. What are the advantages of air source heat pumps?
(1) It can operate all day long all year round and is not affected by rain, snow and other weather conditions.
(2) Compared with the dangers of flammability, poisoning, short circuit and other dangers in traditional heat pumps (gas or oil, electric boilers), it is a safe and reliable heat pump.
(3) Environmentally friendly products, no pollution, no emissions of burning substances.
(4) Convenience: The air source heat pump occupies a small space and is similar in appearance to the outdoor unit of the air conditioner.
(5) It can automatically add water, heat, and cut off power, and can provide hot water 24 hours a day. Users can enjoy hot water in any weather conditions.
3. Can the heat pump provide domestic hot water?
Yes. All hot water is provided by heat pumps. A 50-liter buffer water tank and a 200-liter water tank need to be installed. The size of the water tank changes according to your daily needs.
