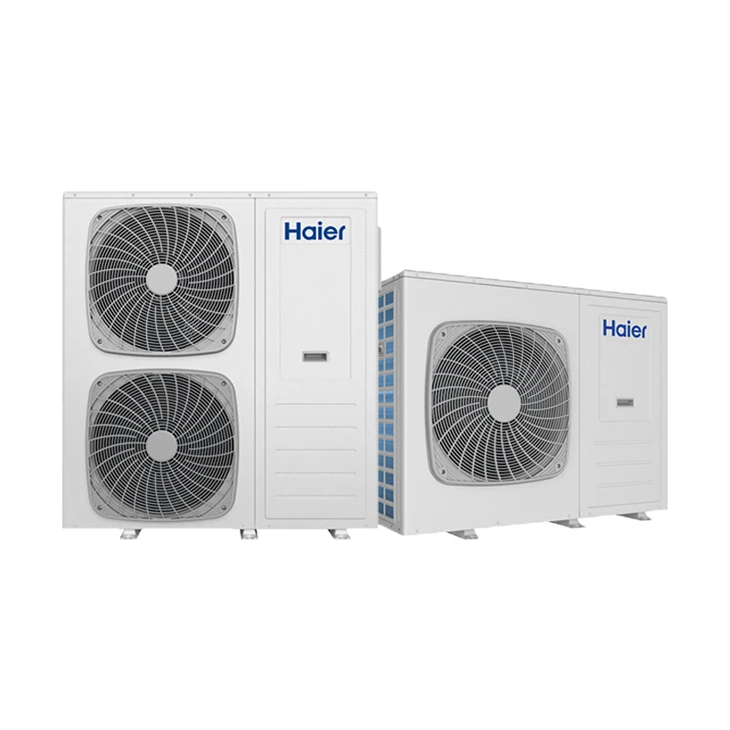

Central Heat Heat Pump

Central Heat Heat Pump

1.High efficiency and energy saving:
2.Easy to operate:
3.Flexible installation:
4.Longevity and durability:
Send Inquiry
Description
Product introduction:

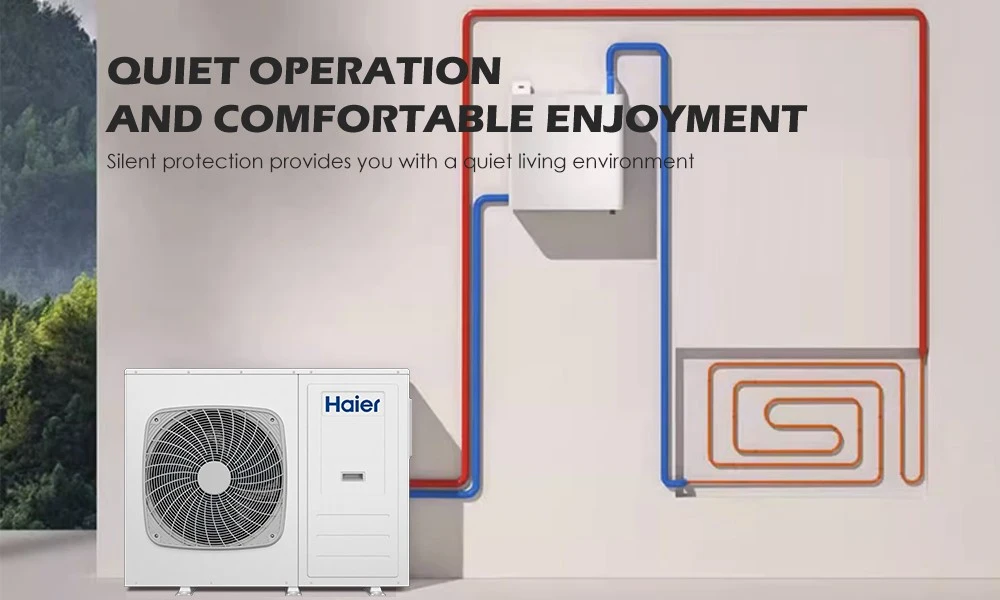

product-1000-600

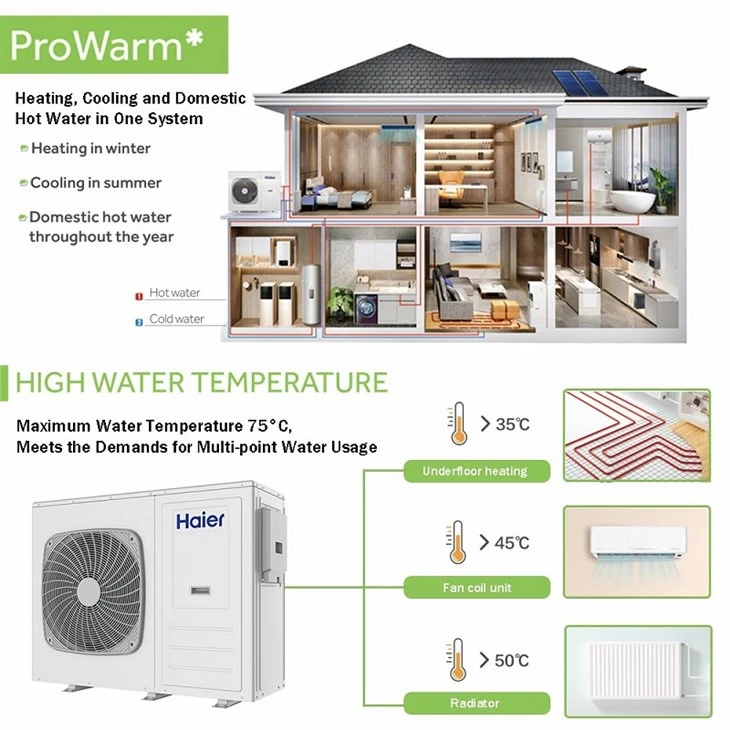

Haier central heat pump is an efficient and energy-saving comprehensive solution integrating heating, cooling and hot water. It can not only meet the needs of different seasons, but also save energy and protect the environment. Multiple operating modes, intelligent operation, flexible installation, and long service life make your life more comfortable and convenient.



Model

HPM

HPM

HPM

HPM

HPM

08-Nd2

10-Nd2

12-Nd2

14-Nd2

16-Nd2

Intended use of the units

Low and medium temperature application

Power supply

V / Ph / Hz

220-240/1/50

Heating
(AT7/6, WT30/35)

Capacity

kW

8

10

12

14

16

Rated power input

kW

1.62

2.08

2.45

2.74

3.25

COP

kW/kW

4.95

4.8

4.9

5.11

4.92

Heating
(AT7/6, WT47/55)

Capacity

kW

8

10

12

14

16

Rated power input

kW

2.42

3.03

3.43

4.24

5

COP

kW/kW

3.3

3.3

3.5

3.3

3.2

Cooling
(AT35, WT23/18)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

1.63

2.15

2.78

2.74

3.33

COP

kW/kW

4.9

4.65

4.1

5.11

4.8

Cooling
(AT35, WT12/7)

Capacity

kW

8

10

11.4

14

16

Rated power input

kW

2.5

3.33

4.07

4.52

5.51

COP

kW/kW

3.2

3

2.8

3.1

2.9

SCOP

Average climate

35℃

4.9

4.9

4.9

5.2

4.9

Average climate

55℃

3.85

3.85

3.85

3.9

3.9

Season space heating energy efficiency class

Average climate

35℃

A+++

A+++

A+++

A+++

A+++

Average climate

55℃

A+++

A+++

A+++

A+++

A+++

SEER

Fan coil application

7℃

4.5

4.5

4.5

5.1

5.1

Cooling floor application

18℃

6.3

6.5

6.2

7.0

7.0

Refrigerant

Type

-

R290

Charge

kg

1.3

1.3

1.35

1.95

1.95

E-Heater Backup

kW

3.0

3.0

3.0

6.0

6.0

Sound Pressure(1m)

dB

45

49

51

51

51

Water pump

Rated water flow

m3/h

1.38

1.72

2.06

2.41

2.75

Total water head

m

12.5

12.3

12

11.5

11.1

Available water head

m

9

8.8

8.5

8

7.6

Maximum working pressure of refrigerant

Mpa

0.85/3.2

Water side safety valve

Mpa

0.6

0.6

0.6

0.6

0.6

Water proof grade

/

IPX4

Water side connection

in

1

1

1

1

1

Net dimension

W*D*H

mm

1312x470x990

1312x470x1370

Package dimension

W*D*H

mm

1362x567x1167

1362x567x1560

Ambient temperature range

Cooling

10-48

Heating

-30-35

DHW

-30-43

Leaving water temperature range

Cooling

5-25

Heating

24-75

DHW

30-60



product details:



product-1000-596

1. By optimizing internal pipelines, we can improve efficiency and reduce energy consumption, making our work more efficient.

2. Special compressor for heat pump + intelligent temperature control system to ensure system stability, with the maximum outlet water temperature reaching 75℃



product-1000-601

3. Intelligent control system: The UI panel flexibly sets the operating mode according to user needs to improve comfort.

4. There is a shock-absorbing rubber block at the bottom of the rack, which can effectively reduce the impact of rack vibration on the equipment, thereby ensuring the stable operation of the equipment.



product-1000-595

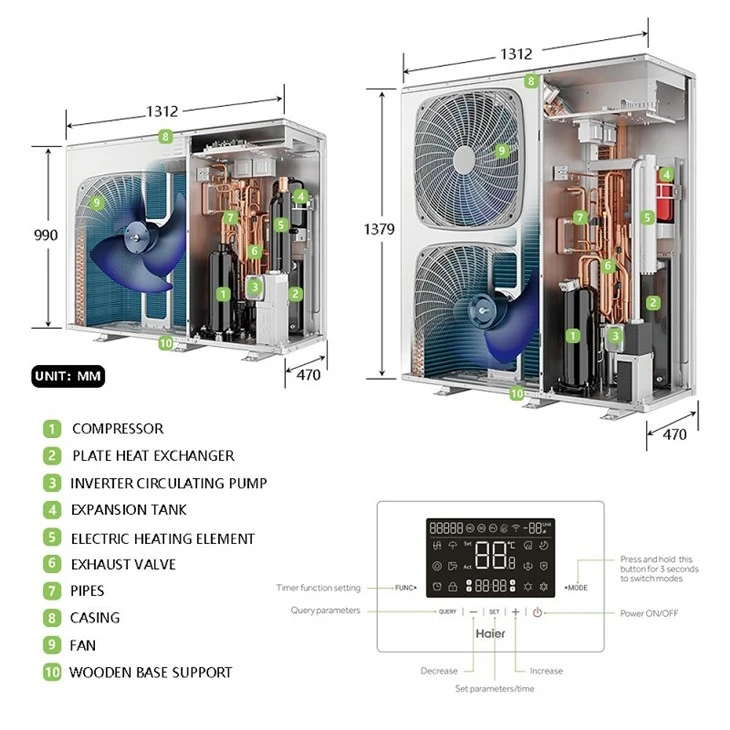

Product Part Description:

product-1000-599

1.Control system: It adopts advanced dual pressure sensors and chip technology to ensure high-precision data collection and processing capabilities, providing a strong guarantee for efficient operation.

2. Electronic expansion valve: It has higher response speed and more precise temperature control capabilities, ensuring safe and stable operation of the equipment.

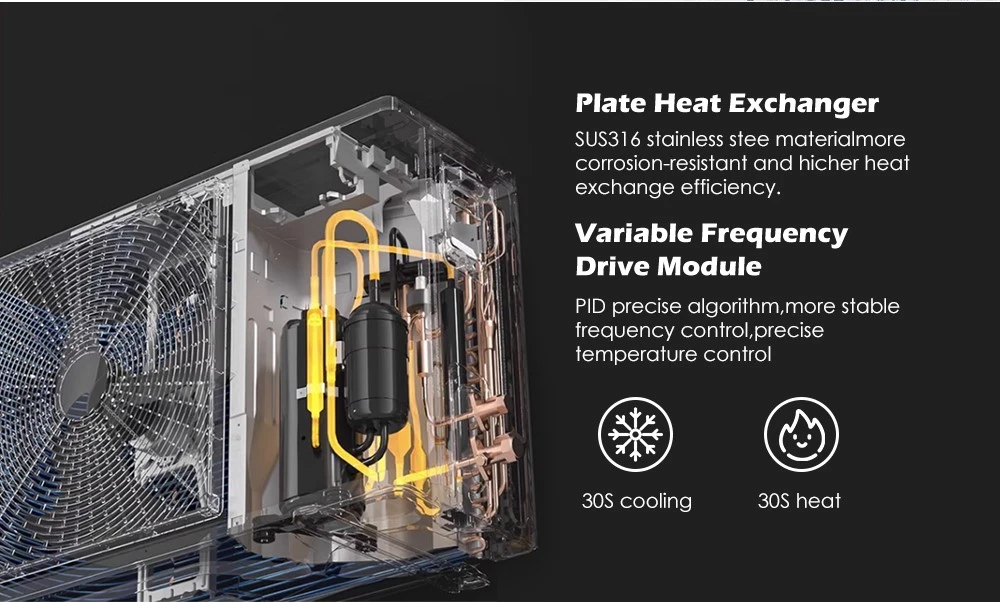

product-1000-602

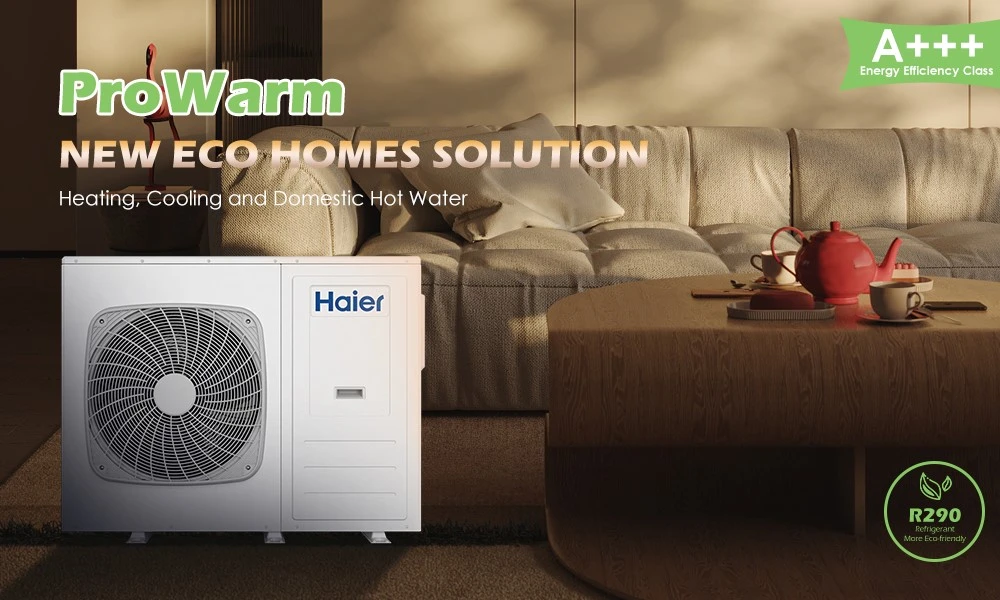

product-1000-600

product-1000-600

product-1000-600



Product quality assurance

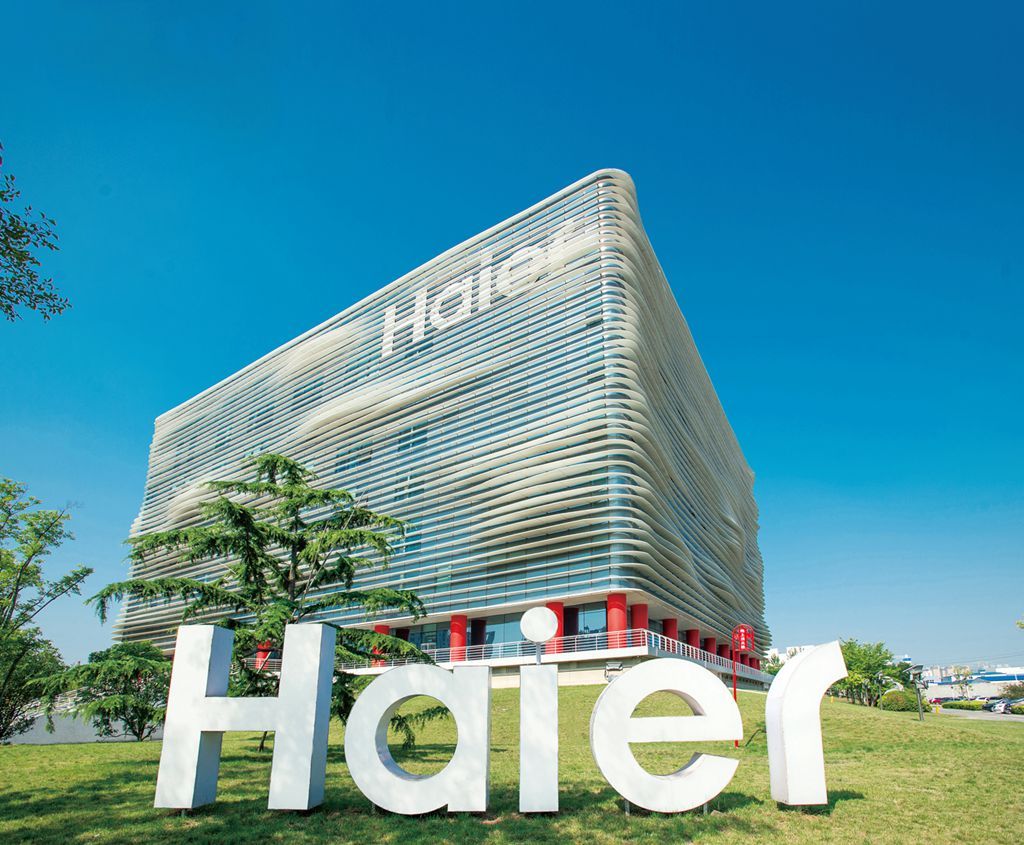

product-1024-845

As a company specializing in the manufacturing of air source heat pumps, Haier has always paid great attention to product quality. A strict quality assurance mechanism has been established globally to strive to provide customers with stable and reliable heat pump products. In order to ensure product quality, joint laboratories for air source heat pump technology have been established in China in Shanghai and Hangzhou. These laboratories have national-level heat pump performance, noise, enthalpy difference, vibration stress and other laboratories, which can conduct comprehensive testing and evaluation of products. At the same time, we are also equipped to test the standards of different countries such as European standards, Australian standards, and national standards to ensure that products can meet the needs of customers in different regions. In addition to laboratory testing, it also has the world's first "lighthouse" factories and Industry 4.0 intelligent production to improve production efficiency and product quality. These factories have advanced production equipment and quality management systems to provide customers with high-quality products while also meeting customer requirements for product delivery.

We believe that only by providing high-quality products and services can we win the trust and support of our customers. Create higher value for customers.



Q&A about the product:

1. What is the after-sales service of this product?

Answer: The after-sales service we provide you can respond to your needs in a timely manner no matter when and where.



2. What is the energy consumption of this product?

Answer: This product has low energy consumption and high efficiency, preventing energy waste.



3. What is the service life of this product?

Answer: This product is made of high-quality materials and is durable with a service life of up to ten years.



4. Is the product flexible to install?

Answer: This product does not need to be buried underground, saves space, is suitable for a variety of room types, and is flexible and convenient to install.



5. What are the advantages of this product?

Answer: This product can not only meet the needs of different seasons, but also save energy and protect the environment. Multiple operating modes, intelligent operation, flexible installation, and long service life make your life more comfortable and convenient.
